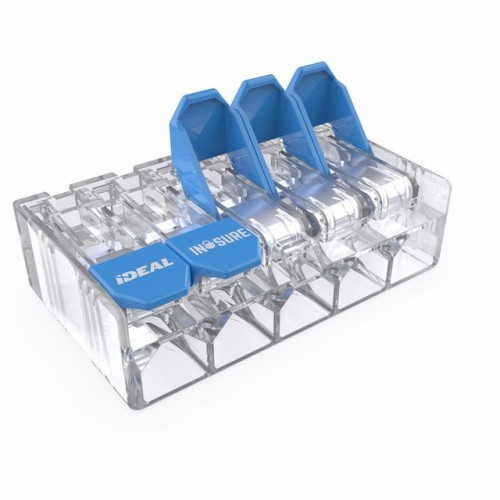

The IDEAL 30-00L35 provides five connection ports for terminating multiple conductors up to 6mm². Its lever-operated, reusable design supports fast and consistent installation, while the compact housing makes it suitable for applications where connection capacity and installation space are important considerations.
Key Features
- Designed for use with solid, rigid-stranded (≤7 strands) and flexible from 0.5 mm2 to 6.0 mm2
- IEC 60998: 41A | 450V | 85° C (ambient), UL 486C: 30A | 600V | 105° C (working)
- BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant
- CE, UKCA, UL and ENEC approved
- Built-in locking feature and continuity check port with a strip length guide
- Patented easy-to-open lever minimises strain on your hands
- Conveniently sized to easily fit into junction boxes
- Strip Length 12-14 mm
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Warranty | Limited 1 Year |
| Plenum Rated | No |
| Number of Ports | 5 |
| Flexible Skirt | No |
| Colour | Blue, Clear |
| For Wire Type | Solid, Stranded |
