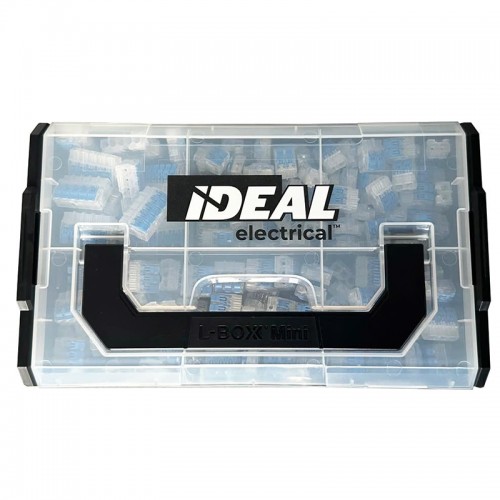

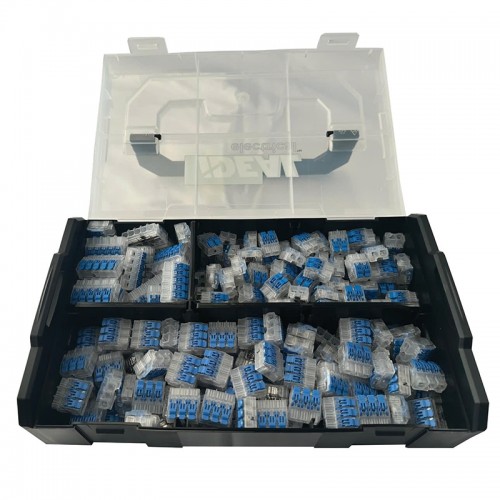

The IDEAL 30-5030EU Lever Connector Kit provides a comprehensive assortment of 225 connectors for professional electrical installation and maintenance work. Supplied in an organised storage case, the kit offers convenient access to multiple connector sizes for terminating solid, stranded and flexible conductors.

Key Features

• Easy to use: no need to lift the levers when using on solid wire
• Secure your cables in seconds: no screwdriwer, no crimping, just strip, push, connect
• Releasable connector: for solid, stranded and flexible wires
• Innovative levers: opens in the opposite direction of insertion points to avoid accidental loosening or pull out
• Compact design: suits tight spaces
• Two continuity check ports: for testing
• Clear window: allows for verification of connection
• Strip Length: 11-12 mm | 0.45″ Wire clamping range: 0.2 mm2 to 4.0 mm2 (24 - 12 AWG) for solid and rigid stranded wires (7 strands) 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires
• BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant.
• CE, UKCA, UL and ENEC approved
