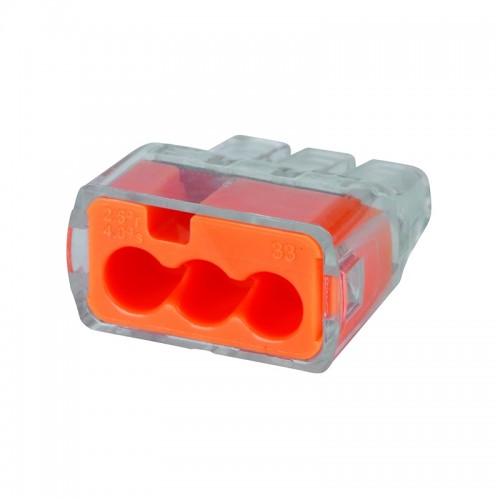

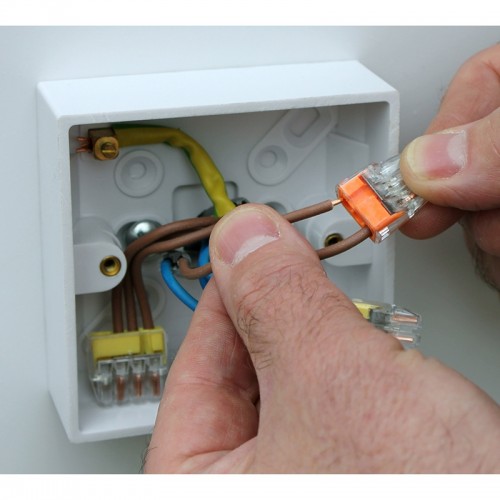

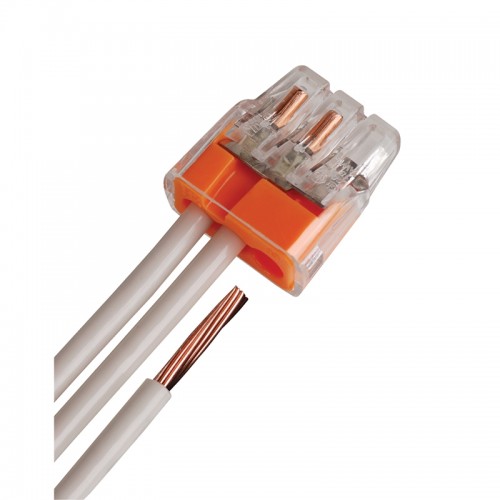

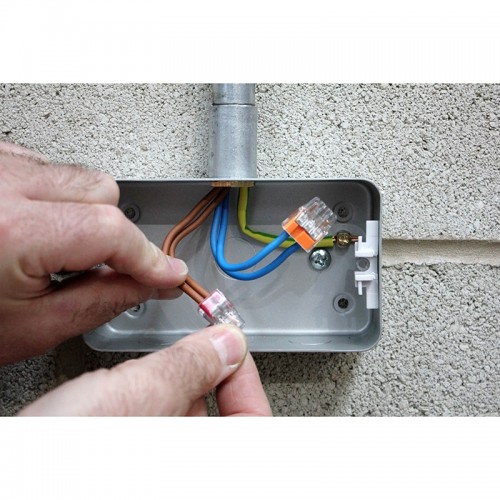

The IDEAL 30-1033 is a compact 3-port push-in connector designed for efficient multi-wire termination. Conductors can be inserted directly into the housing, allowing installers to create secure and consistent connections without screw terminals, crimping or additional installation tools.

Key Features

• The In-Sure® Push-In wire connector can reduce installation time by up to 50% compared to more traditional connection methods such as terminal blocks.
• Classified as "Maintenance Free", In-Sure® connectors are the perfect replacement for crimped splices.
• The fastest, easiest, push-in connector on the market.
• Clear shell allows visual inspection of the connection.
• Check port for continuity testing.
• Push-in design reduces repetitive motion fatigue 2 to 8 wire connections for 0.75mm² - 4.0mm² solid and 1.5mm² - 2.5mm² stranded conductors (stranded wire is limited to semi-rigid i.e. >7 strands).
• Meet BS EN 60998-1 and BS EN 60998-2-2 standards BS 7671:2008 (17th Edition) Compliant Amperage / Voltage 2, 3 & 4 port rated to 32A / 450V 5, 6 & 8 port rated to 24A / 450V.
