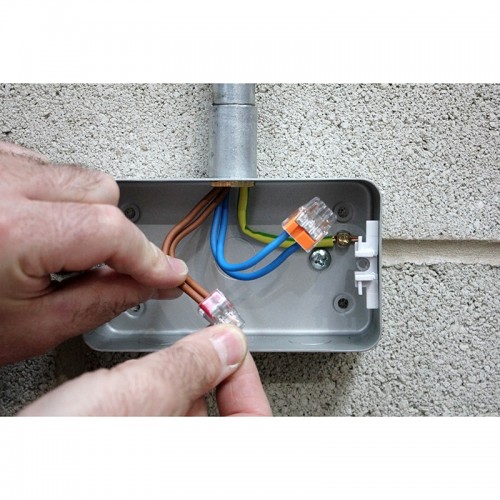

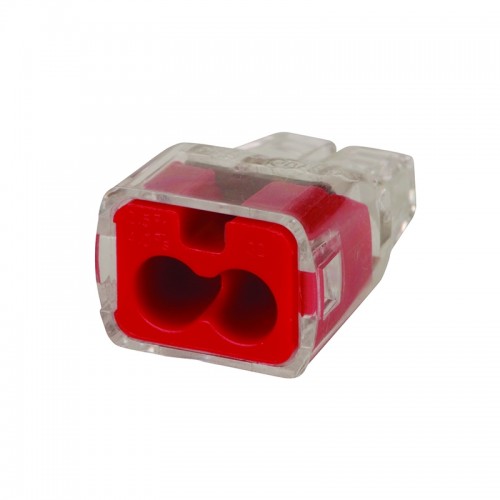

The IDEAL 30-1032 push-in connectors provide a fast and straightforward method of joining two conductors without screws or operating levers. Their compact design makes them suitable for space-restricted enclosures, helping installers produce consistent electrical terminations with minimal preparation.

Key Features

• The IDEAL 30-1023 In-Sure® push-in wire connector can reduce installation time by up to 50% compared to more traditional connection methods such as terminal blocks.
• In-Sure® connectors are the perfect replacement for crimped splices.
• In addition the most popular 2, 3 & 4 port models are rated to 32 Amps. Fits any combination of 0.75mm² - 4.0mm² solid or 1.5mm² - 2.5mm² stranded (≤ 7 strands) copper conductors or tin bonded flexible wire.
• 32 Amp rating on 2, 3 and 4 port models.
• High quality, secure connections.
• Clear shell allows verification of connection.
• Ergonomic design for easy grip and comfort. Low insertion force for fast connections.
• Continuity test port.
• Colour coded for easy identification.
• BS 7671:2008 (17th Edition) compliant. Conform to EN 60998-1 and EN 60998-2-2 connecting device standards.
