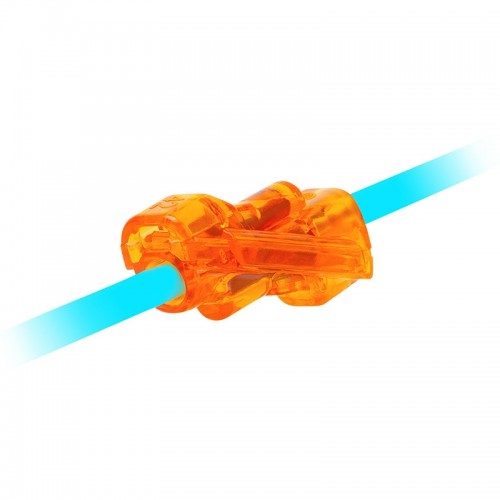

The IDEAL 30-1042 MDL42 in-line connectors provide a compact 2-port solution for joining conductors in a straight-through configuration. Their push-in design enables quick, tool-free termination, making them particularly useful for extending wires and completing neat in-line connections in confined installation spaces.
Key Features
- IDEAL 30-1042 SpliceLine® in-line wire connector provides a crimp-free, solderless butt-splice.
- Classified as Maintenance Free as per BS 7671:2008, the two-port model accepts up to 4mm² wire, allowing one connector to do the job of multiple through-crimps.
- Its end-to-end connection is also a great solution for pre-fab operations.
- 32A rating.
- Tool-free, push-in through crimp.
- Easily passes through standard knockouts.
- End-to-end connection ideal for pre-fab operations.
- Transparent polycarbonate window for visual inspection of connection.
- Wide wire range of: 0.5mm² to 4.0mm² solid BS 7671:2008 (17th Edition) compliant Conform to EN 60998-1 and EN 60998-2-2 connecting device standards.
Manuals & Datasheets
Technical
| Specifications | |
|---|---|
| Manufacturer | Ideal Industries |
| Butt Connector Material | Copper - Tin Plated |
| Maximum Nominal Cross-Section | 4 mm² |
| Maximum Rated Voltage | 450 V |
| Maximum Temperature | 105°C |
| Minimum Nominal Cross-Section | 0.5 mm² |
| Total Length | 24.3 mm |
| Weight | 0.146 kg |
| Weight Per 100 Pieces | 0.146 kg |
| Packaged Weight | 0.146 kg |
