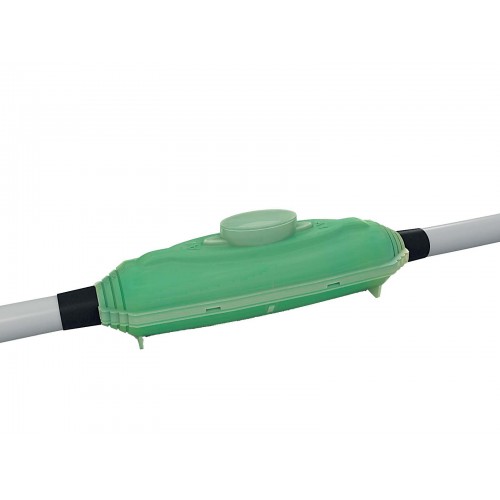

SUBMARINE 190 x 51mm, Epoxy Resin, Straight Joint Kit Suitable for 1.5-10mm 5 Core SWA, Green.

Features

• SUBMARINE Resin Joint WSJA0-7
• Material: Epoxy Resin
• Expiry Date: 3 Years
• Re-enterable: No
• Mixing Ratio: 1:1
• Dielectric Strength 23kV/mm
• Temperature Range: -20°C - 90°C
• Mixing Time: 5 mins (approximately)
• Curing Time: 30 mins (approximately)
• Colour: Green
• datasheet

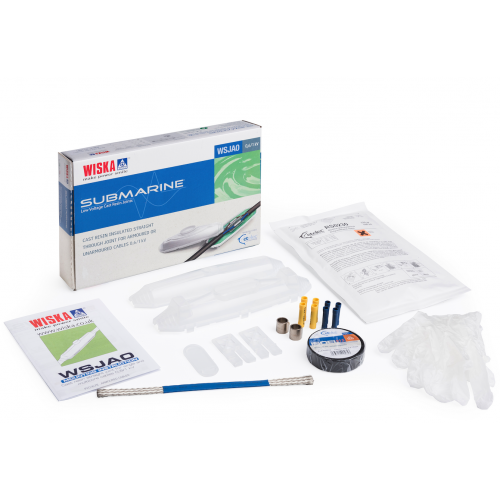

SUBMARINE Straight Series allowing jointing of.6/1 kV single and multicore cables up to five cores. Kit includes 2 transparent half-shells, 2 component resin, Direct Injection casting system allowing pre-mixed resin to be injected inside the joint, modular phase separator, 5 pole terminal block and earthing braid and constant force roll springs.
