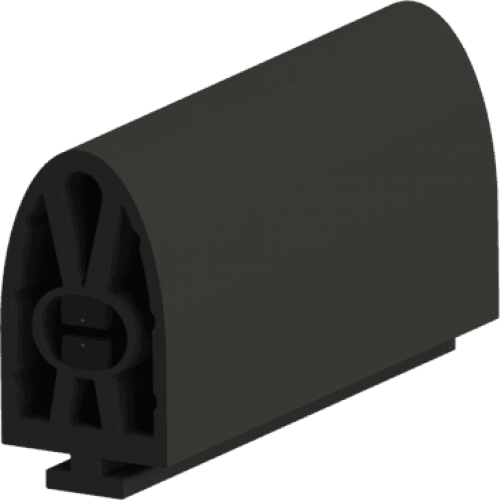

SENTIR Edge 125 TT (Per Meter)

Please contact us for prices.


Priced per meter (25m increments).

  • Profile Dimensions: W 15 mm x H 25 mm
  • T Base
  • Fits AL15-9 Aluminium Profile (exposed)
  • Uses KS3 profile end caps / leads / resistors and the EK125 end caps (not included)


Please Note:

Unfortunately the GE series of safety edges for self assembly are being discontinued.
Please be aware that not all variants are still available, and those that remain are only available while stocks last.


Profile Compatibility:

  • GE225 replaced by GF25.30
  • GE245 replaced by GF25.45
  • GE365 replaced by GF35.55


The GF series of safety edges for self assembly are an ideal replacement and are available by clicking here.

Performance Data
Working Temperature-20°C --> 55°C
Profile Data
ApprovalCat. 3/EN ISO 13849-1:2008 EN ISO 1760-2 EN ISO 12978
Electrical Strength24 V 10 mA
Inactive End Region20mm
Maximum Series Connection5 contact edges
Weight per Metre (kg/m)0.18
Technical
Protection Level (IP)IP65

SENTIR Edge 125 TT (Per Meter)


Accessories

  • Total accessories: £0.0
  • Grand total: £

Register now for our best prices on thousands of automation, access control and safety products
This product has a minimum quantity of 25, and must be ordered in multiples of 25
