LISENS scan – Smart, Contact-Free Safety for Barriers and Gates
Boost safety without physical contact using next-generation radar sensing.
LISENS scan is ASO’s advanced sensor system, engineered for touch-free protection of gates, traffic barriers, and access points. With state-of-the-art FMCW radar technology, it accurately identifies and differentiates between vehicles and pedestrians, ensuring dependable safety with no compromise.
Key Features
- Package includes control unit only. Sensor and mounting bracket are sold separately, or available as part of a complete system bundle.
- Next-Gen Solution: A smart, low-upkeep alternative to traditional induction loops and photocells
- Highly Compatible: Seamlessly works with barriers using swing arms, skirts, or rest posts
- Non-Invasive Installation: Installs easily without digging or disrupting road surfaces
- Fast Deployment: Built for quick and simple setup
- Weather-Resistant: Performs reliably in all environmental conditions
- Retrofit-Ready: Perfect for upgrading existing systems to meet current safety standards
Package Contents

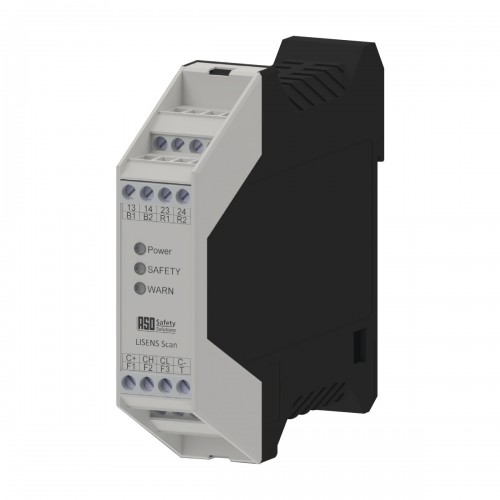

- 1 x LISENS scan CUC2-2BA Control Unit (Type D)
Manuals and Guides
ASO LISENS scan Introduction Datasheet
ASO LISENS scan Product Information Datasheet
ASO LISENS scan Benefits Datasheet
Technical Data
| Specification | Details |
|---|---|
| Protection Level | Cat. 2, PL “d” |
| Horizontal Opening Angle | 120° |
| Vertical Opening Angle | 40° |
| Detection Range | 13 m |
| Dimensions (Evaluation Unit) | 22.5 mm x 114 mm x 99 mm |
| Protection Class (Evaluation Unit) | IP 20 |
| Operating Voltage (Evaluation Unit) | DC 10–30V, AC 12–26V |
| Safety Outputs | Potential-free relay or 8k2 or FSS |
| Comfort Outputs | 3 x SSR |
| Radar Technology | 60 GHz FMCW Radar |
| Object Detection | Classification and tracking, static/dynamic differentiation |

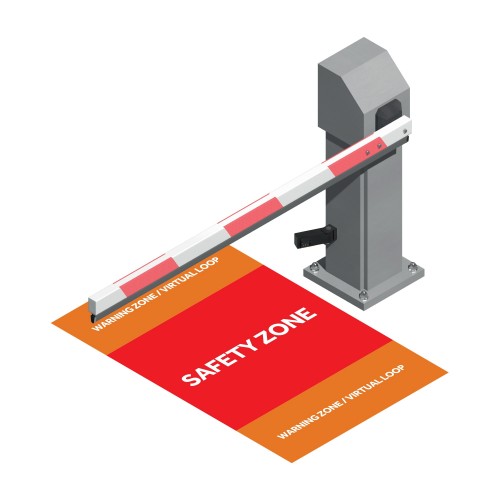

| Virtual Induction Loops | Supported |
| Configuration | WIFI-enabled |
