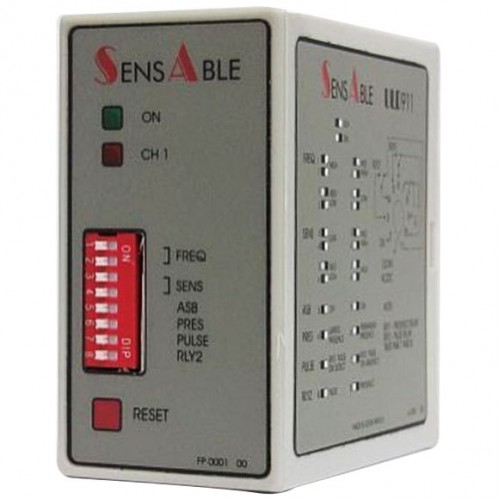

Sensable Sensors ULD466911 Single Channel Loop Detector 230V

Click Image for Gallery

The Sensable Sensors ULD466911 is a 230V single channel loop detector, this device is an ideal choice for use with induction loop automation technologies.

Ideal for

Parking barriers
Vehicle access control
Motorised gates and doors
Industrial door access control

Features

230v version
Single loop channel
2 Output Relays

Relay 1 - Presence (Fail safe)
Relay 2 - Pulse/Presence (selectable)

Compact housing
Wide self-tuning range
Strong loop field strength
Sensitivity levels optimised for parking/vehicle access applications
High interference immunity
Selectable output configuration
Permanent presence feature
High-level circuit protection
Adjustable sensitivity levels
Automatic sensitivity boost

Datasheet

Sensable Sensors ULD466911 Datasheet

Alternative model numbers

ULD466911

ULD4669/11F

Details
Indications	2 LED’s Green = Power Red = Output
Protection	Loop isolation Transformer/Zener Diode/GDT Power/Relays - MOV
Reset Button	Flush mount on the front panel
Dimensions
Dimensions	76mm(H)x 40mm(W) x 75mm(D)
Electrical Data
Current Consumption (A)	100mA max
Output Configuration	2 Output Relays Relay 1 - Presence (Fail safe) Relay 2 - Pulse/Presence (selectable)
Relay Rating	5A @ 230V AC
Input Voltage	230V AC
Performance Data
Working Temperature	-40°C to +80°C
Technical
Connector	11 pin
Inductive Range	20 – 1500uH
Presence Time	Selectable Permanent or limited
Pulse Timing	Selectable Entry or Exit
Response Time	100ms
Sensitivity	Four steps adjustable: High, Medium High, Medium Low, Low
Sensitivity Boost	Selectable on Med High, Med Low and Low settings
