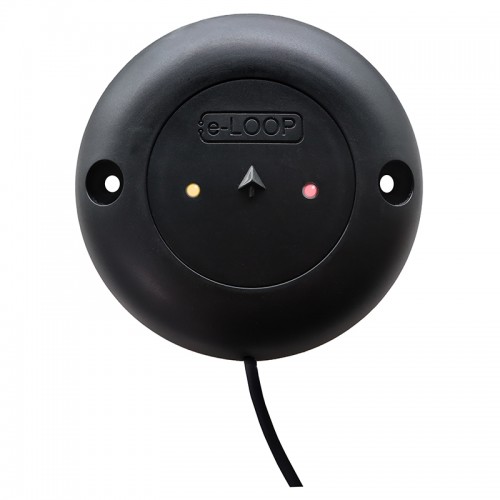

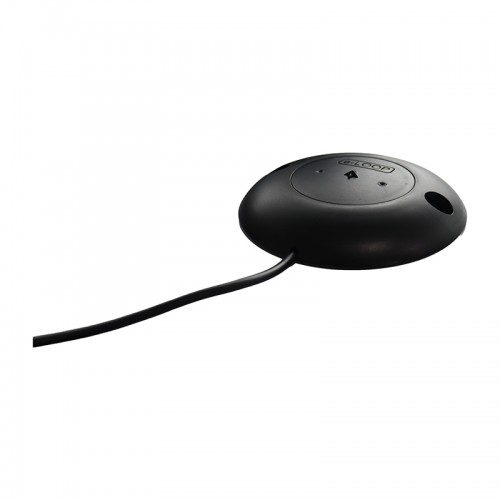

The AES EL00W-RAD Wired e-Loop is a professional vehicle detection solution designed for high-traffic gate automation and access control installations. Combining magnetic field sensing with radar detection, it delivers accurate presence monitoring while offering a faster and less disruptive alternative to traditional inductive loops.
Fully potted for complete water protection and built to withstand demanding site conditions, the EL00W-RAD is ideal for commercial, industrial and multi-user access applications where reliable vehicle detection is essential.
Key Features
- Presence mode operation with dual magnetic and radar detection.
- Quick installation with minimal groundworks compared to traditional induction loops.
- Designed for high-use commercial and industrial sites.
- Fully potted IP68 construction for long-term reliability in harsh environments.
- 10-tonne static load rating for demanding vehicle access points.
- Secure 128-bit encrypted operation.
Manuals & Datasheets
Technical:
| Radio Specifications | |
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Bit Rate | 9.6 kbps |
| Bandwidth | 250 kHz |
| Antenna Type | PCB |
| Nominal Output Power | 10 dBm |
| Receive Sensitivity | -126.2 dBm |
| Security | 128-bit AES encryption |
| Spurious Emissions | 30 to 1000 MHz: < -56 dBm 1 to 12.75 GHz: < -44 dBm 1.8 to 1.9 GHz: < -56 dBm 5.15 to 5.3 GHz: < -51 dBm |
| Power, Physical & Environment | |
| Power | 12-24VDC Input |
| Dimensions | 120 x 120 x 20mm |
| Weight | 500 g |
| Environment | Designed for above-ground mounting IP69 ingress protection |
| Operating Temperature | -40°C to 100°C |
| Standby Power | 15 mA |
| Activation Power | 30 mA |
| Activation Time | 300ms |
| Compliance | |
| Safety | Tested to CE |
| EMC | FSKTested to: EN 301 489-1 V2.2.3 “Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for Electro Magnetic Compatibility” Including: a)_Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b)_Transmitter and receiver test to EN 300 220-1 V3.1.1 'Short Range Devices (SRD) operating in the frequency range 25MHz. to 1000MHz; Part 1: Technical Characteristics and methods of measurement.” c)_Immunity Tests to EN 301 489-1 |
