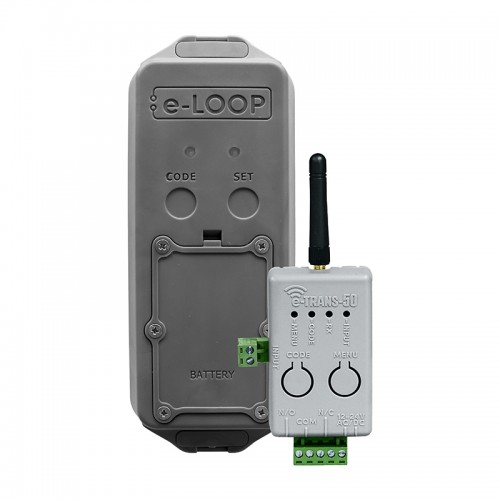

The AES EL00PM-RAD-K e-Loop Post Mount Kit provides a reliable wireless vehicle detection solution for automated gates, barriers and vehicle access systems. Designed for installations where ground loops are unsuitable or difficult to install, the sensor mounts directly to a post or bollard and uses advanced magnetometer technology with radar confirmation to accurately detect approaching and stationary vehicles.
With secure 128-bit encrypted wireless communication, IP68 weather protection and up to three years of battery life, the EL00PM-RAD-K offers a dependable, low-maintenance solution for residential, commercial and industrial access control applications.
Key Features:
- Post-mounted wireless vehicle detection sensor.
- Includes e-Trans-50 transceiver for connection to gate automation equipment.
- Presence Mode operation with radar confirmation.
- Military-grade magnetometer sensing technology.
- Combined magnetic field and radar detection for improved accuracy.
- No trenching or driveway excavation required.
- IP68-rated weatherproof enclosure.
- Secure 128-bit encrypted wireless communication.
- Wireless range of up to 50 metres to a compatible transceiver.
- Powered by 2 × AA lithium batteries with up to 3 years of battery life.
Manuals & Datasheets:
Technical:
| Radio Specifications | |
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Bit Rate | 100 kbps |
| Bandwidth | 50 kHz |
| Antenna Type | PCB |
| Nominal Output Power | 14 dBm |
| Receive Sensitivity | -126.2 dBm |
| Security | 128-bit AES encryption |
| Spurious Emissions | 30 to 1000 MHz: < -56 dBm 1 to 12.75 GHz: < -44 dBm 1.8 to 1.9 GHz: < -56 dBm 5.15 to 5.3 GHz: < -51 dBm |
| Power, Physical & Environment | |
| Power | 2 x 1.6 V, 3000 mA |
| Dimensions | 176 x 70 x 30 mm |
| Weight | 200 g |
| Environment | To be post-mounted 600mm above ground IP68 ingress protection |
| Operating Temperature | -40°C to 80°C |
| Standby Power | 14 µA |
| Activation Power | 40 µA |
| Compliance | |
| Safety | Tested to CC Approval |
| EMC | Tested to: EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for ElectroMagnetic Compatibility” Including: a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b) Transmitter and receiver test to EN 300 220-1 V3.1.1 “Short Range Devices (SRD) operating in the frequency range 25 MHz to 1000 MHz; Part 1: Technical Characteristics and methods of measurement”. c) Immunity Tests to EN 301 489-1 |
