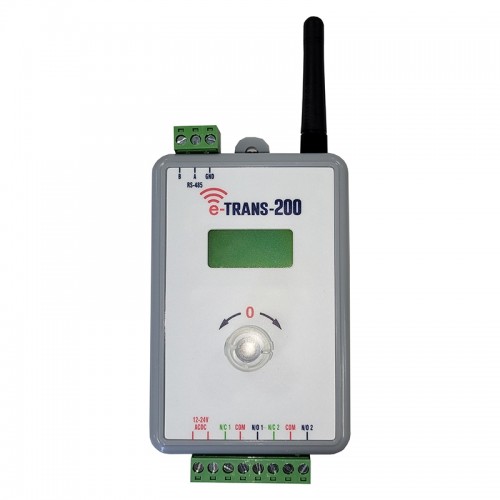

The e-Trans 200 is a high-capacity transceiver engineered for demanding access control and vehicle detection applications. Featuring two channels and support for up to four loops, it delivers reliable performance across medium to large installations.
With the ability to manage up to 200 e-TX transmitters, the system provides exceptional scalability for expanding sites. An integrated LCD display allows quick access to advanced configuration settings, simplifying commissioning and ongoing maintenance. For long-term reliability, installation within a weatherproof enclosure is recommended when deployed in exposed environments.
Key Features:
- Supports 200 e-TX Remotes and 4 e-Loops simultaneously, expanding system scalability
- Wiring requirements: 12mA at 10-36V DC or 10-26V AC, with optional low current draw (LDC) at 4.5mA
- Sequence Mode capability for advanced system coordination
- Enhanced programmability and diagnostic functions to simplify setup and troubleshooting
- Dual-channel operation providing flexible control options
- RS-485 communication support for integration with wider control networks
Technical:
| Specifications | |
| Channels | 2-channel transceiver |
| Supported Loops | Up to 4 e-Loops |
| Remote Capacity | Up to 200 e-TX remotes/transmitters |
| Keypad Capacity | Up to 4 e-Keypads |
| Entry Button Capacity | Up to 4 entry buttons/triggers |
| Operating Voltage | 10-36V AC/DC |
| Standby Current | 16mA (Radio Awake), 4.5mA (Radio Sleep) |
| Radio Frequency | 433.39 MHz |
| Relay Outputs | 2 x relays, 1A contact rating |
| Relay Modes | Pulse, Latch, Hold |
| Display | Integrated LCD programming interface |
| Communications | RS-485 compatible |
| Antenna Support | SMA connector for optional long-range antenna |
