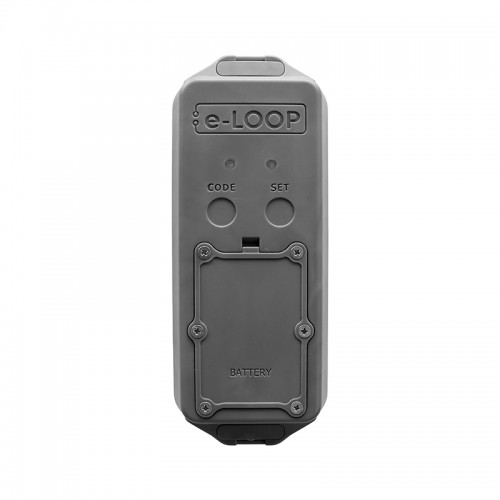

The AES EL00PM-RAD is a compact wireless vehicle detection sensor designed for automated gates, barriers and vehicle access systems. Featuring advanced magnetometer sensing with radar confirmation, it delivers reliable vehicle detection without the need for costly excavation or underground loop installation.
Its post-mounted design makes it ideal for locations where traditional induction loops are impractical, while the durable IP68-rated housing ensures dependable operation in all weather conditions. Suitable for residential, commercial and industrial sites, the EL00PM-RAD provides accurate vehicle presence detection with secure wireless communication to compatible AES e-Loop transceivers.
Key Features:
- Post-mounted wireless vehicle detection sensor.
- Presence Mode operation with radar confirmation.
- Military-grade magnetometer sensing technology.
- Combined magnetic field and radar detection for improved accuracy.
- No trenching or driveway excavation required.
- IP68-rated weatherproof enclosure.
- Secure 128-bit encrypted wireless communication.
- Wireless range of up to 50 metres to a compatible transceiver.
- Powered by 2 × AA lithium batteries with up to 3 years of battery life.
- Compatible with AES e-Trans 50, 100 and 200 transceivers.
Manuals & Datasheets:
Technical:
| Radio Specifications | |
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Bit Rate | 100 kbps |
| Bandwidth | 50 kHz |
| Antenna Type | PCB |
| Nominal Output Power | 14 dBm |
| Receive Sensitivity | -126.2 dBm |
| Security | 128-bit AES encryption |
| Spurious Emissions | 30 to 1000 MHz: < -56 dBm 1 to 12.75 GHz: < -44 dBm 1.8 to 1.9 GHz: < -56 dBm 5.15 to 5.3 GHz: < -51 dBm |
| Power, Physical & Environment | |
| Power | 2 x 1.6 V, 3000 mA |
| Dimensions | 176 x 70 x 30 mm |
| Weight | 200 g |
| Environment | To be post-mounted 600mm above ground IP68 ingress protection |
| Operating Temperature | -40°C to 80°C |
| Standby Power | 14 µA |
| Activation Power | 40 µA |
| Compliance | |
| Safety | Tested to CC Approval |
| EMC | Tested to: EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for ElectroMagnetic Compatibility” Including: a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b) Transmitter and receiver test to EN 300 220-1 V3.1.1 “Short Range Devices (SRD) operating in the frequency range 25 MHz to 1000 MHz; Part 1: Technical Characteristics and methods of measurement”. c) Immunity Tests to EN 301 489-1 |
