Replaces traditional wired inductive loops, saving you time and money while increasing reliability!

Features

e-LOOP In-ground

• Dual sensing technology

• High-security 128-bit encryption.
• Quick and easy installation.
• Recesses into the driveway.
• Not affected by ground movement.
• 14500 mA battery giving up to 10 years of battery life (depending on mode).
• Top access for changing the battery.

• Bi-directional wireless access control system for gate and door applications.

• Compact design with exceptional range.
• SMA connector as standard for an optional long-range antenna connection.
• Single channel

Installation

Complete your installation in 3 simple steps!

1. Code in e-Loop.
2. Core bore 89mm hole 70mm deep and secure using flexible mastic.
3. Calibrate e-Loop... and you're ready to operate in less than 30 minutes.

Save many hours of installation time compared to wired loop systems!

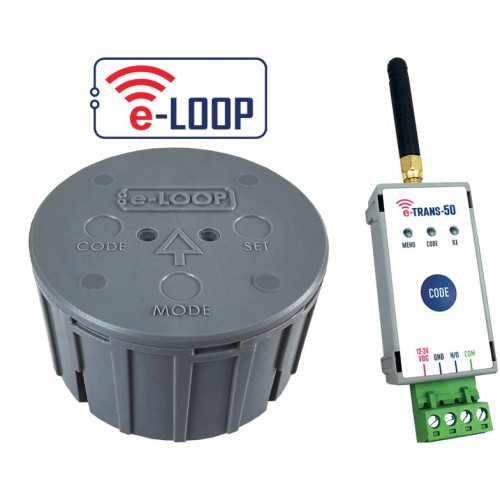

Kit Contents

• 1 x EL00IG-RAD e-LOOP In-ground Loop Kit PRESENCE MODE

• 1 x E-TRANS-50 e-LOOP Transceiver
• 2 x DYNABOLTS Fixing Bolts
• 1 X MAGNET

Support Documents

• AES e-LOOP In-ground Loop Kit PRESENCE MODE Manual
• AES e-LOOP In-ground Loop Kit PRESENCE MODE Datasheet
• AES e-LOOP In-ground Loop Kit Fitting Instructions
• AES E-TRANS-50 Transceiver Datasheet
• AES E-TRANS-50 Transceiver Instructions

Attributes

e-LOOP In-ground:

• Range: Up to 50 metres


• Voltage Range: 10-36V DC

• Low Current Draw: standby = 4.5 m/a active = 30 m/a

• Frequency: 433.39 MHz

• Remote Storage: 50 x remotes, 4 x e-loops, 4 x keypads, 4 x entry buttons

• Relay: 1-amp contact rating, COM and N/O connections x 1 relay

• Modes: pulse, latch and hold
