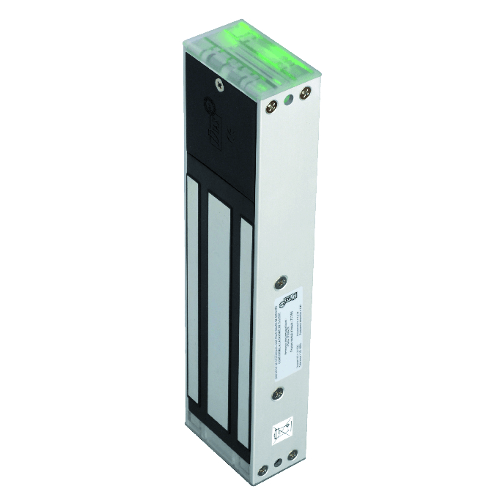

CDVI V5SR/S500M Monitored Standard Magnet

A surface mounted standard magnet with a holding force of up to 500kg. This magnet has no moving parts and boasts an innovative design with safety features being at the forefront, this magnet also includes security/safety ropes to catch the magnet in the case of loose fixings. Rounded ends reduce impact damage and it is compatible with all CDVI bracketry and accessories. This version of the lock also supports monitored allowing for you to see if the lock is engaged or not.

Features:

  • Surface Mounted.
  • Monitored - Allows for the lock to be seen as active or inactive.
  • No Moving Parts.
  • Innovative Visual Indicators.
  • Security "Catch" ropes included.
  • Designed with Safety features in mind.

Technical Specification:

  • Dimensions:
    • ​Single: 266 x 66 x 40 (mm)
    • Double: 532 x 66 x 40 (mm)
  • Voltage: 12/24Vdc
  • Current:
    • 12Vdc: 550 mA
    • 24Vdc: 225 mA
  • Holding Force: 500 kg



CDVI V5SR/S500M Monitored Standard Magnet

  • Brand: CDVI
  • Product Code: V5SR/S500M
  • Availability:  In Stock
Register now for our best prices on thousands of automation, access control and safety products

Tags: CDVI, V5SR, S500M, Standard, Magnet, 500kg
