Please note: This lock has been discontinued. It can be replaced by the CDVI I500E/EM500 Mortice Magnetic Lock

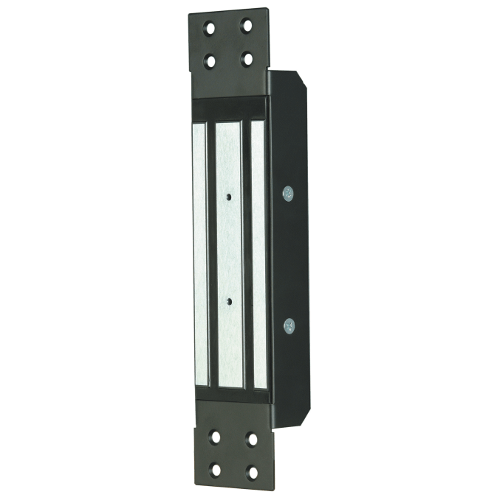

A mortice magnetic lock from CDVI used for securing doors or gates with an easy means of installation and high corrosion resistance, meaning longevity in use even in the harsher environments.

Features:

• No moving parts.
• High corrosion resistance.
• No mechanical wear.
• Fail Safe - Door unlocked when power is off/disconnected.
• No residual magnetism.
• Built-in Varistor - Electronic protection to eliminate back EMF.
• Silent Operation.

Technical Specification:

• Dimensions: 288 x 64 x 37 (mm)
• Voltage: 12/24Vdc
• Current:
  • 12Vdc: 500 mA
  • 24Vdc: 250 mA
• Holding Force: 500 kg
• IP: 42
