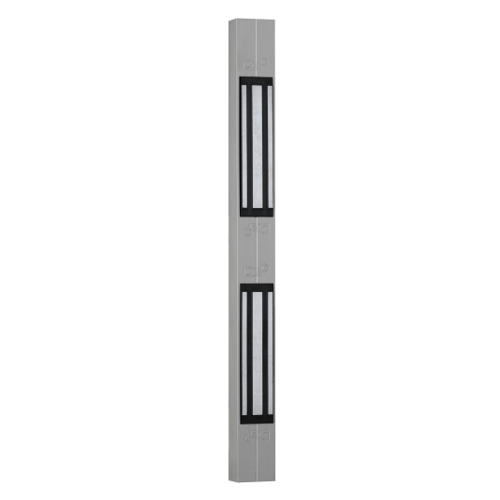

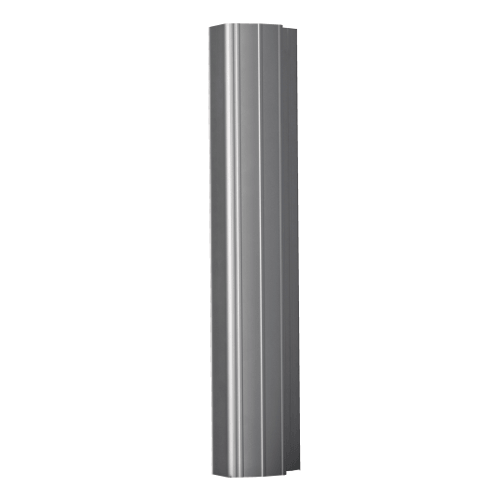

Architectural locking solution with a 600mm handle and comes with 2 magnets.

Features

• Secure surface mount.
• Holding force spread evenly - No door flexing.
• Easy and quick installation.
• Pre-assembled.
• SAA (Satin Anodised Aluminium) finish as standard.
• Aesthetic.
• Monitored Magnets.
• Suitable for metal, wood and glass doors.
• Ideal for retrofit applications.
• Pre-drilled mounting holes.

Options:

• Full Length Handle: 2500mm.
• Mid Position Handles: 400mm & 600mm.

Technical Specification:

• Dimensions:
  • BO800RN: 2500 x 136 x 68 (mm)
  • BO1200RN: 2500 x 136 x 68 (mm)
  • BO800RN3M: 3000 x 136 x 68 (mm)
  • BO1200RN3M: 3000 x 136 x 68 (mm)
  • PBO400RN40: 400 x 136 x 68 (mm)
  • PBO800RN60: 600 x 136 x 68 (mm)
• Voltage: 12Vdc / 24Vdc / 48Vdc
• Current:
  • 12Vdc: 550 mA (Per Magnet)
  • 24Vdc: 275 mA (Per Magnet)
• Holding Force: 400 kg per magnet
