Modern, stylish design. Installation is simple and wireless. Performs consistently over time.

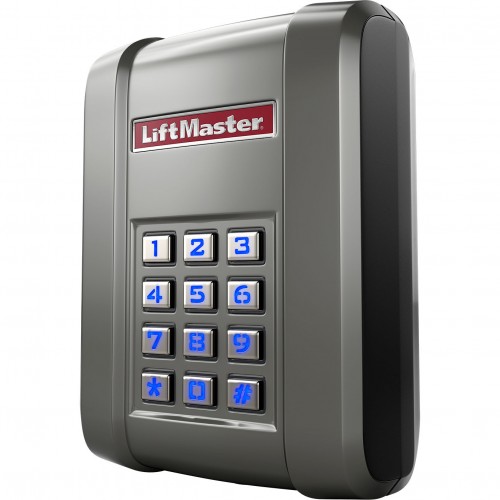

The 850EV from LiftMaster is the perfect wireless security keypad for use with one LiftMaster Gate or Garage Door Operator.
Key Features
- For use with ONE gate or garage door opener at any time
- Temporary PIN, ideal for visitors
- Standalone keypad
- Wireless communication, no need for wiring
- Rolling code security
- Tri-band frequency 433 MHz
- For programming or incorrect PIN entering, a sound confirmation is provided
- Illuminated keyboard with blue backlight, which activates when any key is pressed
- Easy to use in the dark
- Weather-resistant IP55 rated for outdoor use
- A zinc-alloy metal front cover protects it from the elements
Popular Features
4-digit PIN Capacity
- Supports up to 5 permanent PINs.
- Supports up to 10 distinctive temporary PINs, great for residential gates.
6-digit Master PIN
Allows for PIN assignment and provides additional security.
Easy Single PIN Removal
Quickly and easily adjust/remove single PINs, while leaving other PINs untouched.
Lockout Mode
The keypad is disabled for 30 seconds after 5 incorrect PIN inputs.
Quick and Easy Wireless Installation
No need for time-consuming and costly wiring thanks to wireless communication.
Security+ 2.0® Technology
Operates using LiftMaster Security+ 2.0® Tri-band frequency 433 MHz (433.30MHz, 433.92MHz, 434.54MHz).
When the keypad is used to engage with LiftMaster Garage Door and Gate Operators, it practically eliminates interference and provides a longer range.
Easily Portable
The keypad is effortlessly detachable from the mounting bracket, all without tools, using the keys supplied. The programming will still be in operation. It's especially useful for holiday travel.
Kit Contents
- 1 x Wireless keypad 850EV
- 1 x 9V Lithium battery
- 1 x Mounting material
- 1 x Manual
- 2 x Keys
Manual & Datasheet
| Details | |
| Mounting Type | Surface Mounted |
| Vandal Resistance | No |
| Dimensions | |
| Dimensions | 152 x 109 x 45 mm |
| Electrical Data | |
| Battery Life (Estimated) | 5 years |
| Battery Type | PP3 / 6LR61 (9V Alkaline) |
| Number of Batteries | 1 |
| Transmission Power | < 10 mW |
| Wireless / Hard Wired | Wireless |
| Performance Data | |
| Working Temp. (°C Min/Max) | -20°C to 60°C |
| Radio | |
| Coding Type | Rolling Code |
| Frequency (MHz) | LiftMaster Security+ 2.0® Tri-band 433 MHz (433.30MHz, 433.92MHz, 434.54MHz) |
| Technical | |
| Backlit Keys | Yes |
| Protection Level (IP) | IP55 |
