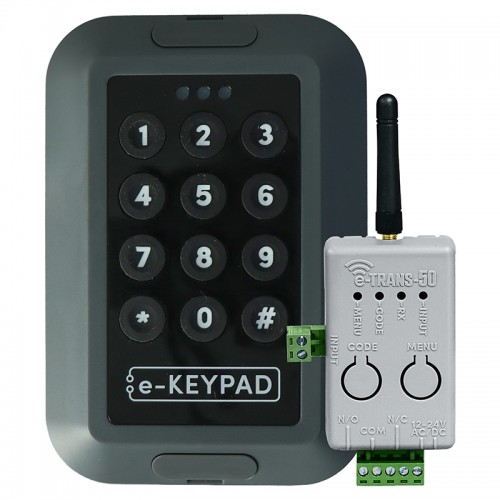

The e-Keypad combines modern design with dependable access control, making it ideal for residential, commercial, and shared-entry environments. Supporting up to 200 unique PIN codes, it provides secure and convenient access management for multiple users.
With three independent output channels, the keypad can control different gates, doors, or functions from a single device, while advanced programming options allow installers to customise operation to meet site-specific requirements.
This kit comes with e-Trans 50 Transceiver included.
Key Features:
- Stores up to 200 User Codes
- Supports 4-8 Digit PIN Codes
- 3 Independent Channels for Multi-Function Control
- AES 128-Bit Encryption for Secure Operation
- Simple Setup and Advanced Installer Options
- Powered by 3V CR2450 Battery (540 mAh)
- Compact Dimensions: 135mm x 90mm x 20mm
Manuals & Datasheets:
Technical:
| Power, Physical & Environment | |
| Voltage | 3V DC |
| Current draw standby | 200 nA |
| Peak current draw | 10 m/a |
| Battery type | CR2450, 540 m/a |
| Frequency | 433.39mHz |
| User Code Storage | 200 codes |
| Supervisor Code Storage | 1 code |
| Channels | 3 Channels |
| Dimensions | 135mm x 90mm x 20mm |
| Pin Code Length | 4-8 Digits |
| Encryption | AES 128-Bit |
| Compliance | |
|---|---|
| Safety | Tested to CE Approval |
| EMC | Tested to: EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for ElectroMagnetic Compatibility” Including a)_Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b)_Transmitter and receiver test to EN 300 220-1 V3.1.1 'Short Range Devices (SRD) operating in the frequency range 25MHz to 1000MHz; Part 1: Technical Characteristics and methods of measurement.” c)_Immunity Tests to EN 301 489-1 |
