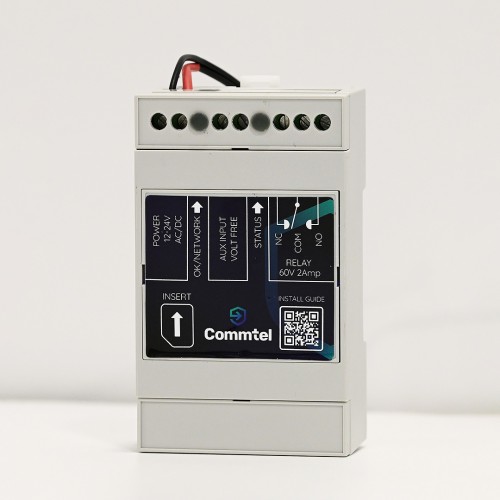

The Commtel 4TGCU Command Unit is a compact 4G access control solution designed to provide secure remote operation of gates, barriers, doors and other powered entrances using a mobile phone. Ideal for residential, commercial and industrial sites, it allows authorised users to open, latch or close entrances remotely, eliminating the need for traditional fobs or keypads.
Supporting up to 1,300 authorised telephone numbers, the 4TGCU is suitable for everything from private driveways to busy logistics centres, storage facilities and secure parking areas. Its integrated 4G LTE connectivity ensures long-term network compatibility, while remote programming, time-based access scheduling and cloud-based management through the CIRRUS platform make administration simple and efficient.
Easy to install and configure, the 4TGCU features two-way communication with confirmation messages, a volt-free input, programmable relay operation and multiple access modes, providing installers with a flexible and reliable access control solution for modern automated entrance systems.
Features
- Dial-to-Open Convenience: Store up to 1300 authorised numbers to allow easy entry by calling the unit from an authorised number, ideal for multi-user sites.
- Remote Control & Feedback: Control the entrance from anywhere via mobile or landline. The unit confirms relay activations with a return text, offering peace of mind that your command has been actioned.
- 4G Connectivity: Equipped with a 4G/VoLTE module for reliable, long-term connection, future-proofed beyond the 2G/3G network phase-out.
- Programmable Time Profiles: On-board the clock supports 9 remotely configurable time profiles, enabling timed access (e.g. weekday entry only, or auto-latch at specific times).
- Low Power Mode: Ideal for solar-powered installations, optional low-power configuration reduces energy consumption without compromising functionality.
Manuals & Datasheet
Technical Specifications
| Construction | |
|---|---|
| Housing & Mounting | DIN rail or wall mounted |
| Dimensions | 52mm (W) x 90mm (H) x 32mm (D) |
| Power & Electrical | |
| Power Supply | 12-24V AC/DC (not supplied) |
| Power Consumption | 120mA idle @ 12V |
| Relays | 1 x 60V 2Amp |
| Relay Activation Time | 1 - 240 seconds, adjustable remotely |
| Auxiliary Inputs | 1 x Volt free auxiliary inputs The auxiliary input is for volt free exit release type buttons only. Damage will result if feeding voltage or any other item that is not a volt free contact. |
| Programming | |
| Programming Methods | Remotely programmable via CONFIG app (for Installers) or CU Companion App (for End Users). |
| Operating Commands | All relay commands are configurable via the dedicated programming App (4G only), remotely, or locally via software, with the ability to Pulse, Latch, Unlatch and Toggle. # pulses RL1 | 3# latches RL3 | 6# unlatches RL3 |
| Time & Alerting | |
| Time Clock | The on-board time clock enables custom profile functions to be activated. Functions include but are not limited to trade button, auxiliary input (via relay), tied latch, call diverts, entry codes, event alerts, service reminders, and more. |
| Capacity | |
| Authorised Dial-to-open | 1300 telephone numbers can be stored. Calling the unit, from an authorised telephone number, activates a predetermined relay. |
| SMS Alerts | |
| Text to open | The intercom sends a confirmation reply when using SMS commands or programming via the app/SMS. These replies may incur charges and ca be switched off by contacting your installer or the technical support team. |
| Connectivity | |
| Network Capability | 4G - VoLTE, backwards compatible with 2G and 3G |
| SIM Card | Micro SIM Card* (Commtel SIM provided upon request and is subject to activation order). |
| Antenna | 4G Antenna |
| Regulatory & Support | |
| Warranty | 2 years (parts only) Programming support not included. Support agreements available separately. |
*Micro SIM Card. (Commtel SIM provided upon request and is subject to activation order).
