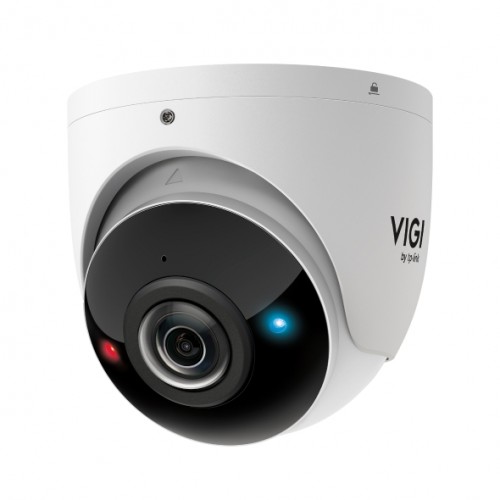

The VIGI 8MP IR Panoramic Turret Network Camera provides a 180 degree panoramic view with 4K Ultra HD clarity and an IR range of up to 20 meters for reliable day and night monitoring. It features red and blue warning lights for added deterrence, along with people and vehicle analytics, human and vehicle classification, and smart detection to improve accuracy and reduce false alerts. Smart video enhancement technology ensures clear imaging in varied conditions, while audio and alarm interfaces offer flexible integration. With an IP67 weatherproof design, this camera is built for dependable outdoor security in a wide range of environments.
Features
- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Kit Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Datasheet
Technical
| Camera | |
|---|---|
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | 1.65 mm: Horizontal FOV: 180° Vertical FOV: 86° Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65 mm: Detect: 144.36 ft (44 m) Observe: 60.15 ft (18.33 m) Recognise: 28.87 ft (8.8 m) Identify: 14.44 ft (4.4 m) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Illuminator | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m)† Wavelength: 850 nm |
| Illuminator On/Off Control | Auto, Scheduled, Always on, Always off |
| Video | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps 60Hz: 1, 5, 10, 15, 20, 25, 30 fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: Image rotation 90° or 270° supports up to 20 fps. |
| Sub-Stream | Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps 60Hz: 1, 5, 10, 15, 20, 25, 30 fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: Image rotation 90° or 270° supports up to 20 fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265, H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps to 8 Mbps Sub: 64 Kbps to 1024 Kbps |
| Image | |
| Image Settings | Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone, Audio In Interface |
| Audio Output | Built-in Speaker, Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams and 3 Sub-Streams |
| Client | VIGI App Web UI VIGI VMS VIGI Cloud VMS VIGI Config Tool VIGI PC Client |
| Web Browser | Google Chrome 57+ Firefox 52+ Safari 11+ Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection HTTPS Encryption IP Address Filter Digest Authentication |
| Alarm and Event Management | |
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human and Vehicle Classification) Video Tampering Detection Exception (Illegal Login) Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording Upload to FTP Server Alarm Output Device Push Notifications Send to Alarm Server Active Defence Sound Alarm Active Defence Light Alarm Email Alarm |
| People and Vehicle Analytics | Advanced attribute-based search for faster post-event review |
| Interfaces | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, supports MicroSD up to 512 GB* |
| Built-in Microphone | Yes, 5 m radius |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| General | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95 percent or less (Non-condensing) |
| Storage Humidity | 95 percent or less (Non-condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.76 Kg |
| Power Supply | 12V DC ± 5 percent, Max. 18 W, 5.5 mm Coaxial Plug PoE: 802.3at, Class 4, Max. 21 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
