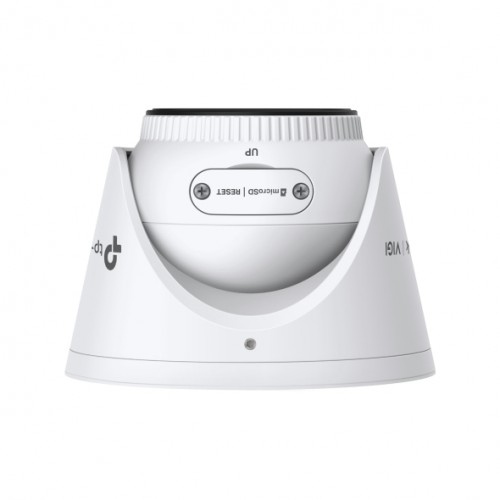

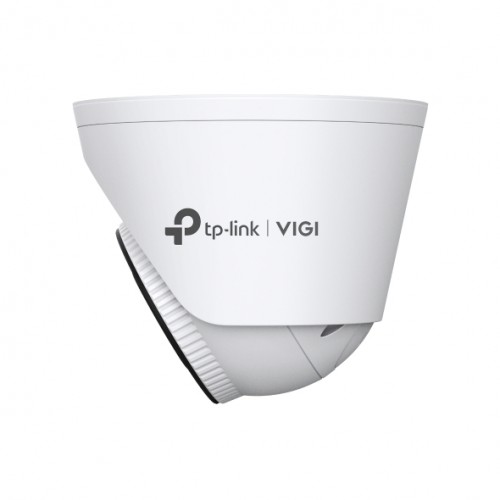

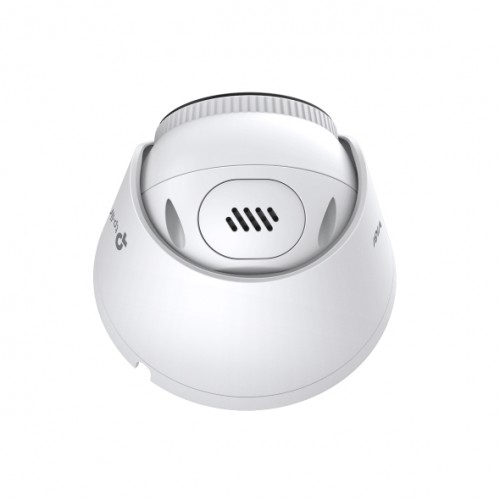

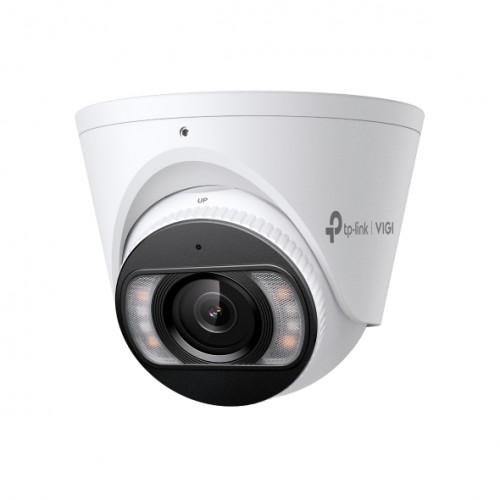

The TP Link VIGI InSight S485 is a professional 8MP outdoor full colour turret camera designed for reliable high definition security monitoring day and night. Powered by advanced VIGI technology, it delivers strong low light performance and durable weather resistance with its IP67 rated casing. The compact turret design includes full colour night vision, intelligent motion analytics, two way audio and AI powered detection, providing clear 4K video and enhanced threat recognition. Suitable for commercial sites, logistics areas, schools and retail environments, it also offers flexible installation options for an efficient and adaptable security setup.
Features
- 4K (8MP) Ultra HD and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defence and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
Kit Contents
- 1x VIGI Network Camera
- 1x Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Datasheet
Technical
| Camera | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal: 111.4°, Vertical: 58.8°, Diagonal: 134° 4 mm: Horizontal: 91.5°, Vertical: 46.1°, Diagonal: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognise: 17 m (56 ft) Identify: 8 m (28 ft) 4 mm: Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognise: 21 m (70 ft) Identify: 11 m (35 ft) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Illuminator | |
| IR LED | Quantity: 4 Range: 30 m Wavelength: 850 nm |
| White LED | Quantity: 4 Range: 30 m |
| Illuminator On/Off Control | Auto, Scheduled, Always on, Always off |
| Video | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps 60Hz: 1, 5, 10, 15, 20, 25 fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Notes: Rotation 90°/270° supports up to 20 fps. 120 dB WDR enabled supports up to 20 fps. |
| Sub-Stream | Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps 60Hz: 1, 5, 10, 15, 20, 25 fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Notes: Rotation 90°/270° supports up to 20 fps. 120 dB WDR enabled supports up to 20 fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+, H.265, H.264+, H.264 Sub: H.265, H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps to 8 Mbps Sub: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB (DWDR only when analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams and 3 Sub-Streams |
| Client | VIGI App VIGI Security Manager Web UI VIGI VMS VIGI Cloud VMS |
| Web Browser | Google Chrome 57+ Firefox 52+ Safari 11+ Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection HTTPS Encryption IP Address Filter Digest Authentication |
| Alarm and Event Management | |
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human and Vehicle Classification) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording Message Push Audible Warning White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| People and Vehicle Analytics | Search and filter based on different attributes for faster post-event search |
| Interfaces | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-in Memory Card Slot, supports MicroSD up to 512 GB |
| Built-in Microphone | Yes, 5 m radius |
| Built-in Speaker | Yes |
| Audio | N/A |
| General | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95 percent or less (Non-Condensing) |
| Storage Humidity | 95 percent or less (Non-Condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5 percent, Max. 11.5 W, 5.5 mm Coaxial Plug PoE: 802.3af/at Class 0, Max. 12.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
