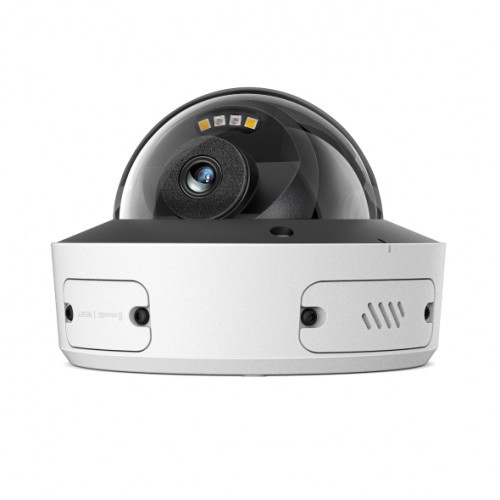

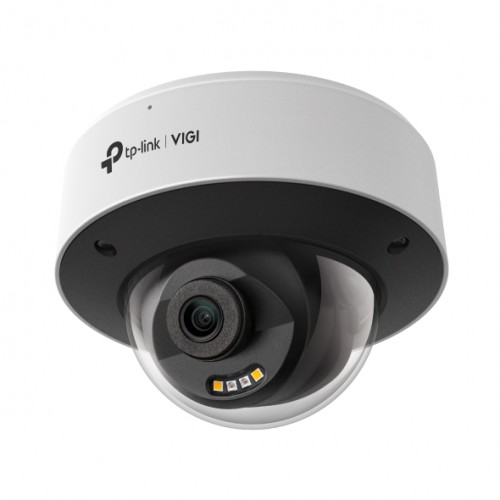

The VIGI InSight S285 with a 4.0 mm lens delivers sharp 8MP imaging, clear two way audio, and smart detection features designed for dependable security monitoring. Its full color technology provides bright and accurate footage even in very low light, while the IP67 weather resistant and IK10 vandal resistant housing ensures reliable outdoor performance. The camera uses human and vehicle classification to identify relevant activity more accurately and reduce unnecessary alerts. It also supports flexible installation, allowing the cable to be routed through a dropped ceiling or guided through the side outlet to simplify mounting and minimise drilling.
Features
- 4K (8MP) Ultra HD and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defence and Two-Way Audio
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
Kit Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Datasheet
Technical
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal: 110°, Vertical: 58.1°, Diagonal: 133.5° 4 mm: Horizontal: 88°, Vertical: 46°, Diagonal: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) 4 mm: Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0°–346°, Tilt: 0°–75°, Rotation: 0°–355° |
| ILLUMINATOR | |
| IR LED | Quantity: 2; Range: 30 m; Wavelength: 850 nm |
| White LED | Quantity: 2; Range: 30 m |
| Illuminator On/Off Control | Auto / Scheduled / Always On / Always Off |
| VIDEO | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz); 1/5/10/15/20/25fps (60Hz) Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: Rotation 90°/270° or HDR enabled limits to 20fps. |
| Sub-Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz); 1/5/10/15/20/25fps (60Hz) Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 Note: Rotation 90°/270° or HDR enabled limits to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps–8 Mbps; Sub: 64 Kbps–512 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC Adjustable |
| Image Enhancement | BLC / 3D DNR / HLC / Smart IR |
| Wide Dynamic Range | 120 dB (Only DWDR when People & Vehicle Analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes (Profile S/T/G) |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, Utility |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Intrusion, Line-Crossing, Region Enter/Exit, Object Abandoned/Removal, Loitering, People Detection, Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Event | Motion Detection (Human/Vehicle Enhanced), Camera Tampering, Illegal Login |
| Alarm Linkage | SD Recording, Message Push, Audible Warning, White Light Flashing |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Attribute-based searching and filtering† |
| INTERFACES | |
| Network Interface | 1 × RJ45 10/100M Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | MicroSD Slot, up to 512 GB§ |
| Built-in Microphone | Yes (5 m Radius) |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | ≤ 95% RH (Non-Condensing) |
| Storage Humidity | ≤ 95% RH (Non-Condensing) |
| Package Content | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | 12V DC ±5% Max 11 W; PoE 802.3af/at Class 0 Max 12.3 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
