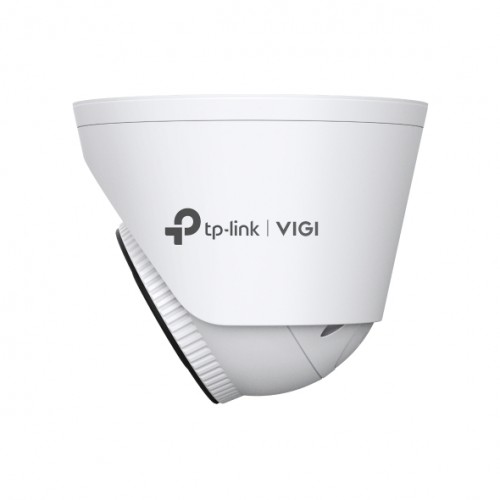

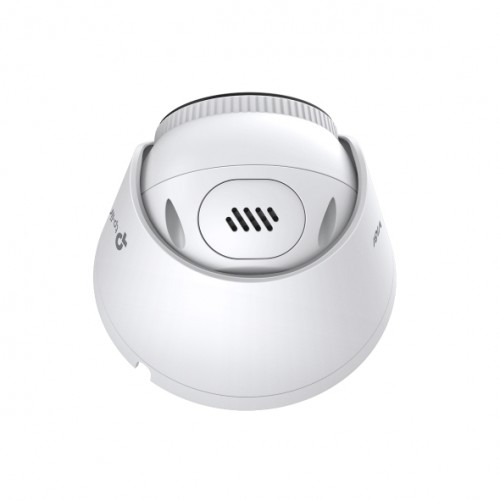

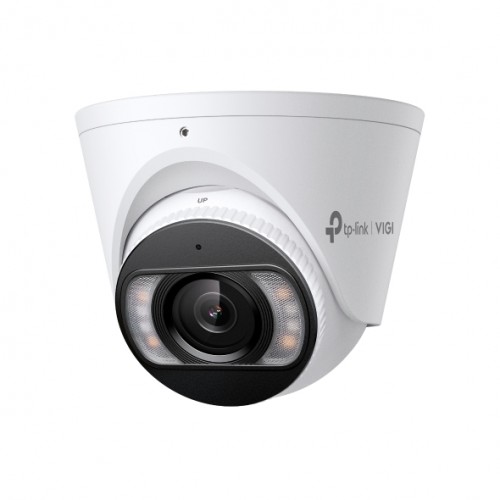

The TP-Link VIGI C440‑W (4mm) is a 4MP full-colour Wi‑Fi turret camera built for indoor and outdoor use, combining a durable design with flexible wired or wireless installation on walls or ceilings. It features a high‑quality CMOS sensor, full‑colour recording, 360° rotation, a 79° horizontal and 43° vertical field of view, plus night vision up to 30 metres for reliable day‑and‑night monitoring. Certified under global standards including CE, RCM, BSMI, VCCI, RoHS, NTRA, and KC, the VIGI C440‑W integrates easily into various environments and delivers dependable, advanced security performance suitable for both residential and commercial settings.
Features
- 4MP Super-High Definition and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defence and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Technical
| Camera | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognise: 13 m (43 ft) Identify: 6 m (20 ft) 4 mm: Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognise: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| Illuminator | |
| Illuminator Type | 4× IR LED 4× White LED |
| IR LED | Quantity: 4 Range: 30 m Wavelength: 850 nm |
| Illuminator Distance | 30 m (98 ft) |
| White LED | Quantity: 4 Range: 30 m |
| Illuminator On/Off Control | Auto, Scheduled, Always on, Always off |
| Video | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265, H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB (DWDR only when People and Vehicle Analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams and 3 Sub-Streams |
| Client | VIGI App VIGI Security Manager Web UI VIGI VMS VIGI Cloud VMS |
| Web Browser | Google Chrome 57+ Firefox 52+ Safari 11+ Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection HTTPS Encryption IP Address Filter Digest Authentication |
| Alarm and Event Management | |
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human and Vehicle Classification) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording Message Push Audible Warning White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| People and Vehicle Analytics | Search and filter based on different attributes for faster post-event search |
| Interfaces | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |

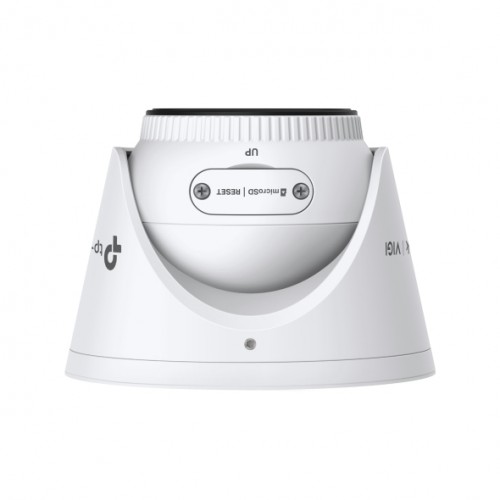

| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-in Memory Card Slot, supports MicroSD up to 512 GB |
| Built-in Microphone | Yes, 5 m radius |
| Built-in Speaker | Yes |
| Audio | N/A |
| General | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95 percent or less (Non-Condensing) |
| Storage Humidity | 95 percent or less (Non-Condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5 percent, Max. 11 W, 5.5 mm Coaxial Plug PoE: 802.3af/at Class 0, Max. 12 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Kit Contents
- 1x VIGI Network Camera
- 1x Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
