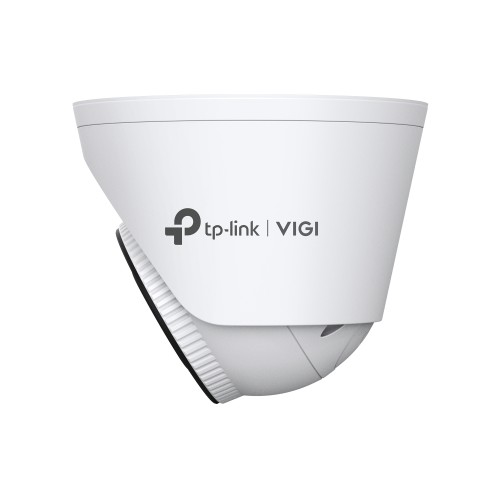

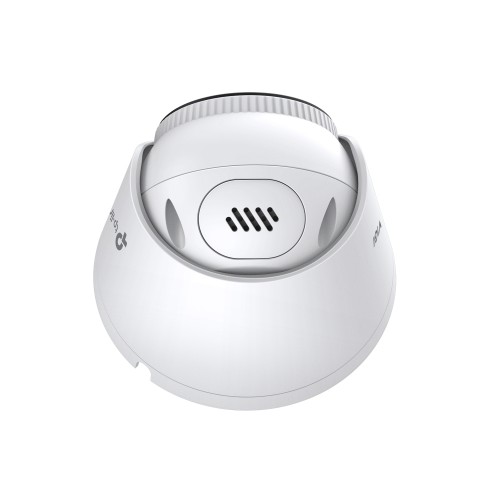

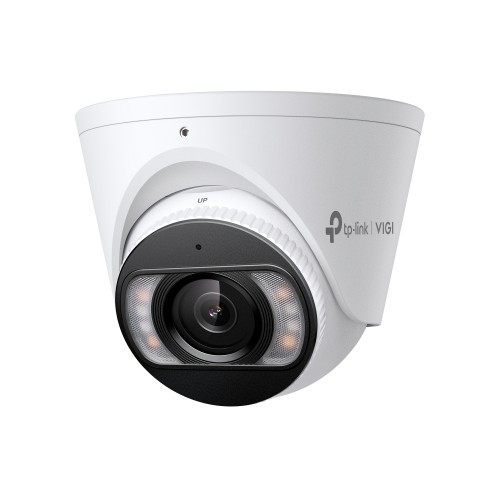

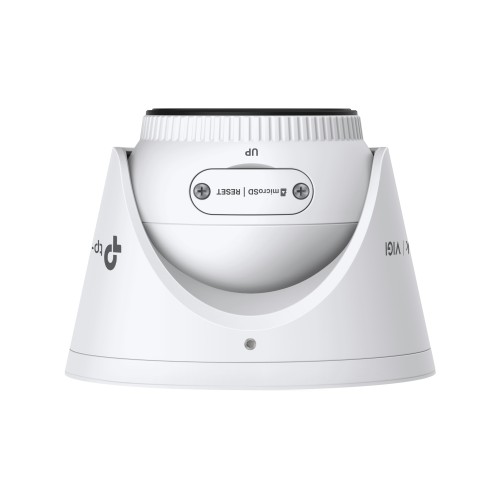

The TP-Link VIGI InSight S445 (2.8mm) turret camera is a high‑performance 4MP full-colour IP surveillance solution designed for reliable use in both indoor and outdoor settings. Equipped with AI-powered detection, PoE connectivity, H.265+ compression, and two-way audio, it delivers professional-grade monitoring in a compact form. This makes it an ideal choice for businesses, retail environments, schools, warehouses, and residential properties that require strong and dependable perimeter or interior security.
Features
- 4MP Super-High Definition and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defence and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Technical
| Section | Specification |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR or White light |
| Day or Night Mechanism | IR Cut Filter |
| Day or Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm or 4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal 100°, Vertical 54°, Diagonal 118° 4 mm: Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7° |
| Lens Mount | M12 P0.5 |
| DORI Distance | 2.8 mm: Detect 64 m, Observe 27 m, Recognise 13 m, Identify 6 m 4 mm: Detect 80 m, Observe 33 m, Recognise 16 m, Identify 8 m |
| Angle Adjustment | |
| Range | Pan 0° to 360°, Tilt 0° to 85°, Rotation 0° to 360° |
| Illuminator | |
| Illuminator Type | 4 IR LEDs, 4 White LEDs |
| IR LED | Quantity 4, Range 30 m, Wavelength 850 nm |
| Illuminator Distance | 30 m |
| White LED | Quantity 4, Range 30 m |
| Illuminator Control | Auto, Scheduled, Always on, Always off |
| Video | |
| Max Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50 Hz 1 to 25 fps; 60 Hz 1 to 30 fps Resolution options: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub Stream | Frame Rate: 50 Hz 1 to 25 fps; 60 Hz 1 to 30 fps Resolution options: 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream H.265+ H.265 H.264+ H.264 Sub Stream H.265 H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main 256 Kbps to 6 Mbps, Sub 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC adjustable |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps G.711 alaw |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S T G |
| Simultaneous Live View | 3 Main Streams and 3 Sub Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarms and Events | |
| Smart Events | Intrusion, Line Crossing, Region Entering, Region Exiting, Abandoned Object, Object Removal, Loitering, People Detection, Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Events | Motion Detection with Human and Vehicle Classification, Video Tampering, Illegal Login |
| Alarm Linkage | Memory Card Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| Deep Learning | |
| People and Vehicle Analytics | Attribute based search and filtering |
| Interfaces | |
| Network Interface | 1 RJ45 10/100M, PoE |
| Reset Button | Yes |
| Power | DC Port |
| On Board Storage | MicroSD up to 512 GB |
| Built in Microphone | Yes up to 5 m |
| Built in Speaker | Yes |
| General | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95 percent or less non condensing |
| Storage Humidity | 95 percent or less non condensing |
| Package Contents | Camera, Quick Start Guide, Waterproof Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 kg |
| Power Supply | 12 V DC 11 W max, PoE 802.3af or at 12 W max |
| Protection | IP67 |
| Dimensions | 111 x 111 x 83.7 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Kit Contents
- 1x VIGI Network Camera
- 1x Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
