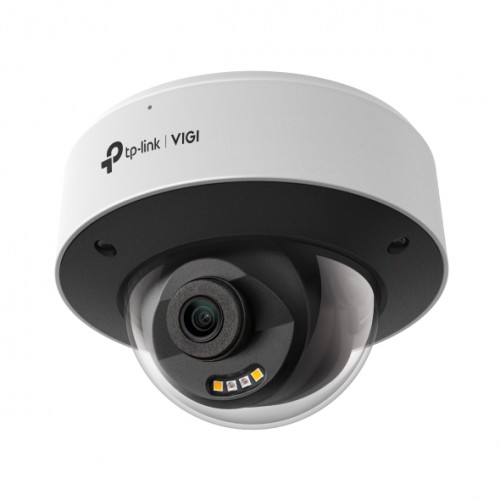

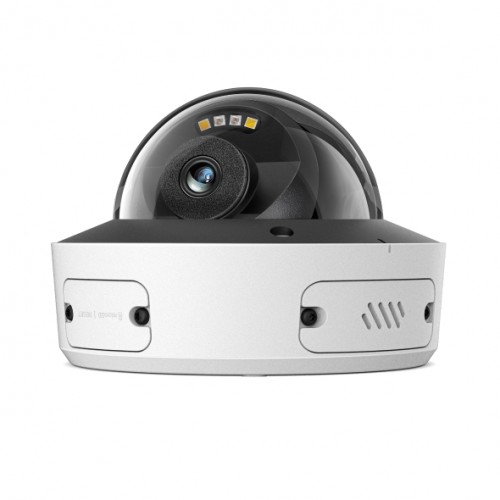

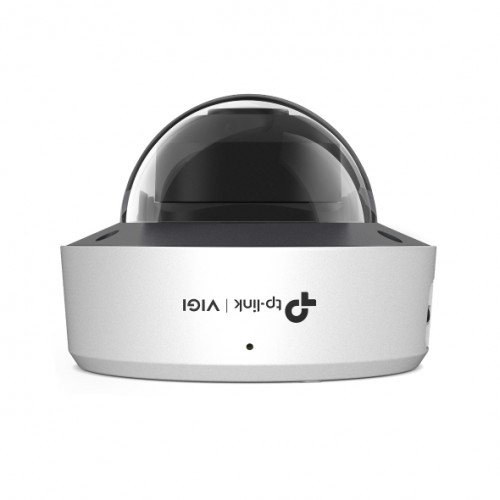

The VIGI 4MP Full Colour Dome Network Camera provides 4MP high definition imaging with round the clock full colour performance for clear and detailed footage in any lighting. It features people and vehicle analytics, human and vehicle classification, and smart detection to deliver accurate monitoring and timely alerts. Smart video enhancement technology improves clarity, while active defence and two way audio support real time deterrence and communication. Built with an IP67 waterproof and IK10 vandal resistant design and using efficient H265 compression, this camera offers durable, reliable performance in demanding environments.
Features
- 4MP Super-High Definition and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defence and Two-Way Audio
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
Kit Contents
- 1x VIGI Network Camera
- 1x Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Datasheet
Technical
| CAMERA | |
|---|---|
| Image Sensor | V1: 1/2.7” Progressive Scan CMOS V1.20: 1/2.65” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| FOV | V1: 2.8 mm: Horizontal 100°, Vertical 54°, Diagonal 118° 4 mm: Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7° V1.20: 2.8 mm: Horizontal 100°, Vertical 54°, Diagonal 118° 4 mm: Horizontal 81°, Vertical 43.9°, Diagonal 96.39° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) 4 mm: Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0°–346°, Tilt: 0°–75°, Rotation: 0°–355° |
| ILLUMINATOR | |
| Illuminator Type | 2 × IR LED, 2 × White LED |
| IR LED | Quantity: 2; Range: 30 m; Wavelength: 850 nm |
| Illuminator Distance | 30 m (98 ft) |
| White LED | Quantity: 2; Range: 30 m |
| Illuminator On/Off Control | Auto / Scheduled / Always On / Always Off |
| VIDEO | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz); 1/5/10/15/20/25/30fps (60Hz) Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: Rotation 90°/270° limits to 20fps. |
| Sub-Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz); 1/5/10/15/20/25/30fps (60Hz) Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 Note: Rotation 90°/270° limits to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps–6 Mbps; Sub: 64 Kbps–512 Kbps |
| IMAGE | |
| Image Settings | Mirror, Rotation, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC Adjustable |
| Image Enhancement | BLC / 3D DNR / HLC / Smart IR |
| Wide Dynamic Range | 120 dB (DWDR only when People & Vehicle Analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built‑in Microphone) |
| Audio Output | Yes (Built‑in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes (Profile S/T/G) |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Intrusion, Line-Crossing, Region Enter/Exit, Object Abandoned/Removal, Loitering, People Detection, Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Event | Motion Detection (Human/Vehicle Enhanced), Camera Tampering, Illegal Login |
| Alarm Linkage | SD Recording, FTP Upload, Push Notifications, Sound Alarm, Light Alarm, Email Alarm, Alarm Server |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Attribute-based searching and filtering† |
| INTERFACES | |
| Network Interface | 1 × RJ45 10/100M Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | MicroSD Slot, up to 512 GB§ |
| Built-in Microphone | Yes (5 m Radius) |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | ≤ 95% RH (Non-Condensing) |
| Storage Humidity | ≤ 95% RH (Non-Condensing) |
| Package Content | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | 12V DC ± 5% Max 10.54 W; PoE 802.3af/at Class 0 Max 12.52 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
