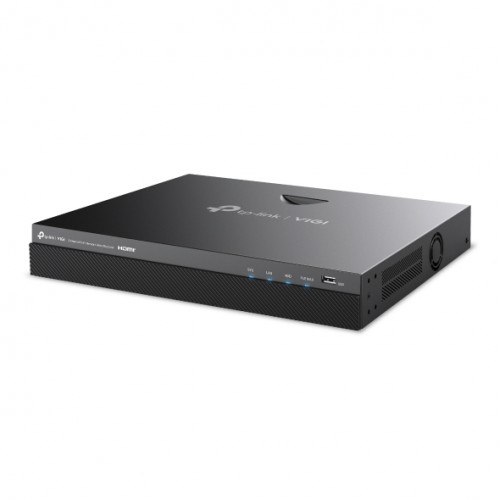

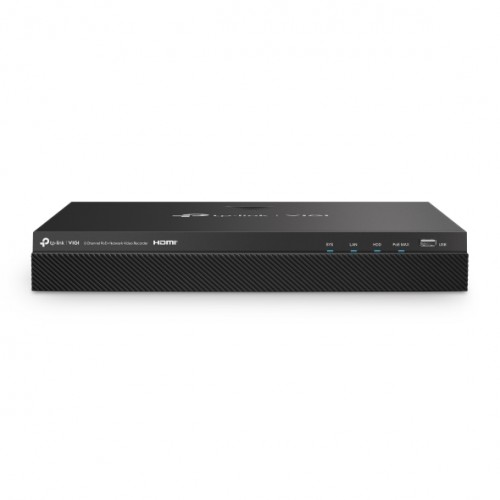

The TP-Link VIGI NVR2008H-8MP is an 8 channel PoE+ network video recorder built for dependable, high quality surveillance across a range of environments. It supports up to eight connected IP cameras and can handle video resolutions as high as 8MP, providing sharp and detailed monitoring for business security needs.
With eight PoE+ ports and a total 90 W power budget, the system can supply power directly to compatible cameras, simplifying installation and reducing cabling requirements. The recorder offers 4K HDMI output, 8 channel synchronous playback and uses H.265+ compression to help maximise storage efficiency without sacrificing clarity. It also supports two SATA drives, allowing up to 16 TB of storage per drive for extended video retention.
Setup and management are designed to be straightforward. One click system initialisation speeds up deployment, while cameras can be added quickly through the VIGI app, a web browser or the VIGI Security Manager software. With broad protocol support and compatibility with a wide range of camera models, the NVR2008H-8MP offers flexibility for both new and existing surveillance installations.
Features
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 90 W PoE Budget
- Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability
- 8-Channel Synchronous Playback
- 160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Independent / Simultaneous Output
- Remote Monitoring
Kit Contents
- VIGI Network Video Recorder
- Power Adapter
- HDD Power Cables
- HDD Data Cables
- Terminal Blocks
- Mounting Brackets
- Screws
- Rubber Feet
- Mouse
- Quick Installation Guide
Manuals & Datasheet
Technical
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display | 1/4/6/8/9 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel*2 |
| Capability | • 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | |
| Protocol | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S, CGI |

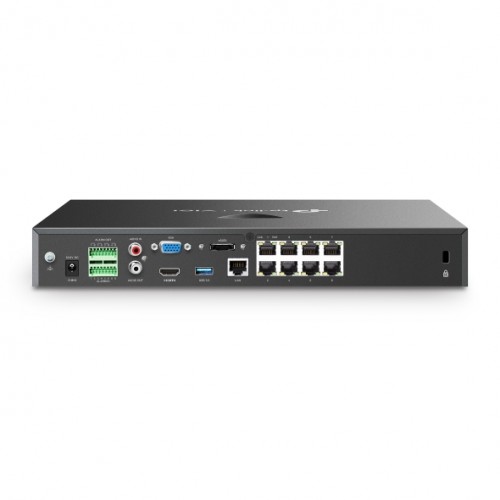

| EXTERNAL INTERFACE | |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1 × DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD*3 |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 8 × RJ-45 10/100 Mbps PoE+ Ports |
| PoE Budget | 90 W*1 Total, 30 W Max per Port |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering/Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame |
| Anomaly Alarm | Video Loss, Offline/IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| GENERAL | |
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%–90% RH Non-Condensing |
| Package Content | VIGI Network Video Recorder, Power Adapter, HDD Power Cables, HDD Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet, Mouse, Quick Installation Guide |
| Working Temperature | NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉); Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%–90% RH Non-Condensing |
| Dimensions (W × D × H) | 13 × 11.2 × 1.8 in (330 × 285 × 45 mm) |
| Net Weight | 2.1 Kg*4 |
| Gross Weight | 3.9 Kg*4 |
| Power Supply | 53.5V DC / 2.43A |
| Max. Power Consumption | 8.5 W (Without Disk), 40 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
