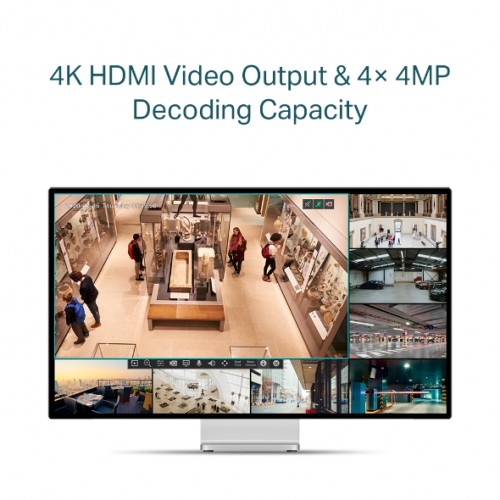

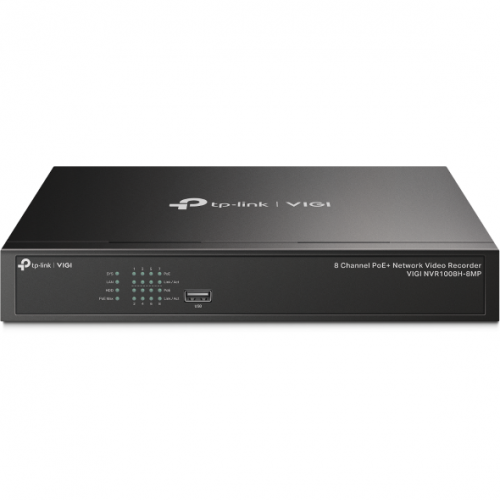

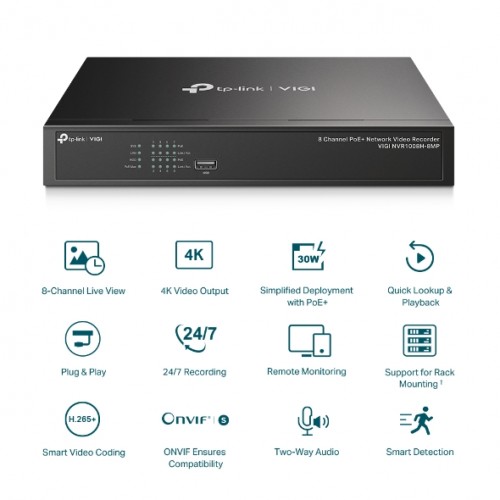

The VIGI NVR1008H‑8MP is built to deliver dependable, high‑clarity surveillance across eight channels, making it a strong fit for small and medium business security setups. It supports 8‑channel live viewing with 4K HDMI output, and works with camera resolutions up to 8MP, ensuring clear and detailed monitoring in every area.
To simplify installation, the system includes 8 PoE+ ports with a 113 W power budget, allowing the recorder to power cameras directly over Ethernet. It uses H.265+ smart video coding to store footage efficiently while maintaining image quality, and offers 8‑channel synchronous playback for smooth event review.
With 80 Mbps incoming and 60 Mbps outgoing bandwidth, the NVR is ready to handle high‑resolution streams. It also supports a SATA drive up to 16 TB, giving ample room for long‑term storage. Setup is fast thanks to Auto Initialize, and remote access is made easy through the VIGI app, browser interface, or the VIGI Security Manager software.
Features
- Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.

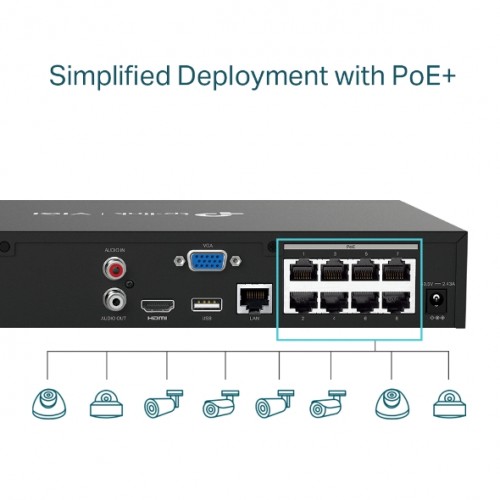

- Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.

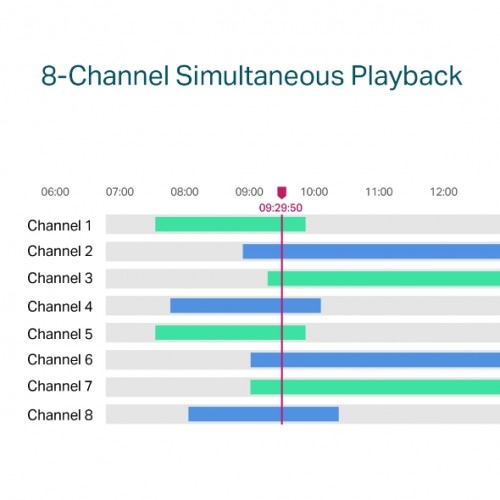

- Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

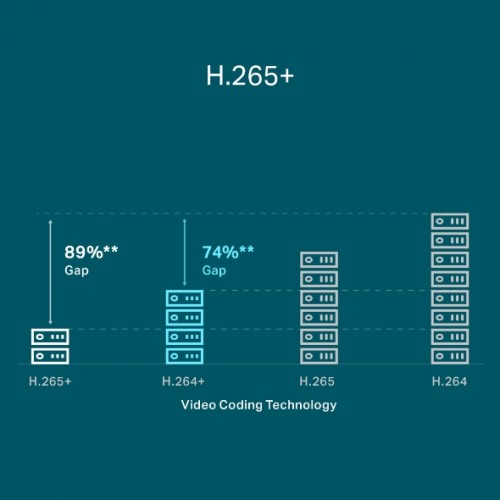

- Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

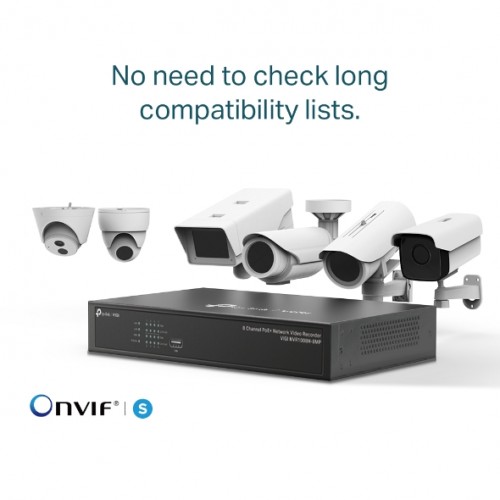

- Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

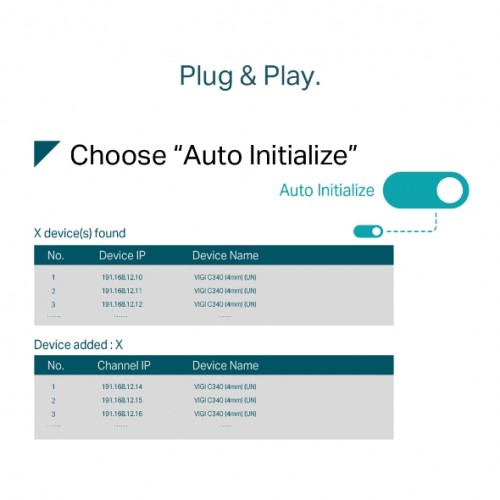

- Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
- With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

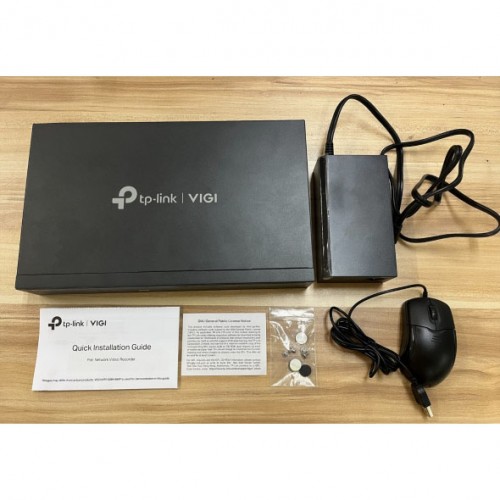

Kit Contents
- 1x VIGI Network Video Recorder
- 1x Power Adapter
- HDD Screws
- 1x Mouse
- 1x Installation Guide
- 4x Rubber Feet
Manuals & Datasheet
Technical
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

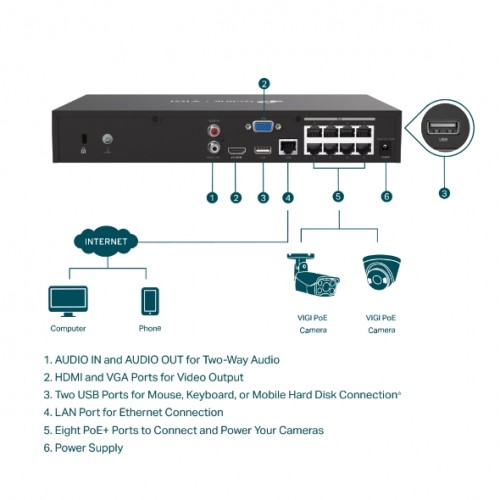

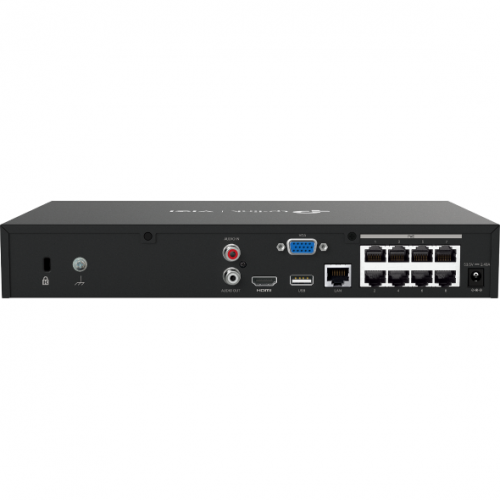

| EXTERNAL INTERFACE | |
| Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 × USB 2.0 |
| Audio Interface | 1 Audio In; 1 Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1 × DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| POE | |
| Standard | 802.3af/at |
| PoE Ports | 1–8 |
| PoE Budget | 113 W Total, 30 W Max per Port |
| Interface | 1–8 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
| Anomaly Alarm | Video Loss, Offline/IP Conflict, Disk Exception, Login Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| INTERFACES | |
| Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 × USB 2.0 |
| GENERAL | |
| Operating Temperature | -10–55 °C |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%–90% RH Non-Condensing |
| Package Content | VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide |
| Working Temperature | NVR: -10–55 °C; Power Adapter: 0–40 °C |
| Working Humidity | 10%–90% RH Non-Condensing |
| Dimensions (W × D × H) | 294 × 180 × 44 mm |
| External Power Supply | 53.5V DC / 2.43A |
| Net Weight | 1.12 Kg |
| Gross Weight | 2.2 Kg |
| Power Supply | 53.5V DC / 2.43 A |
| Max. Power Consumption | 4.82 W (without disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| VIDEO/IMAGE | |
| Video Input | 8-Channel IP Video Input, up to 8 MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
