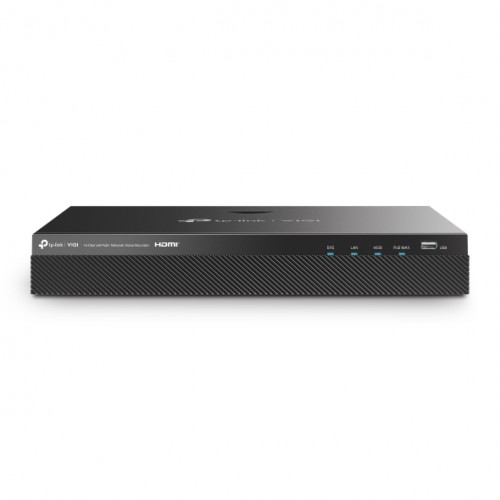

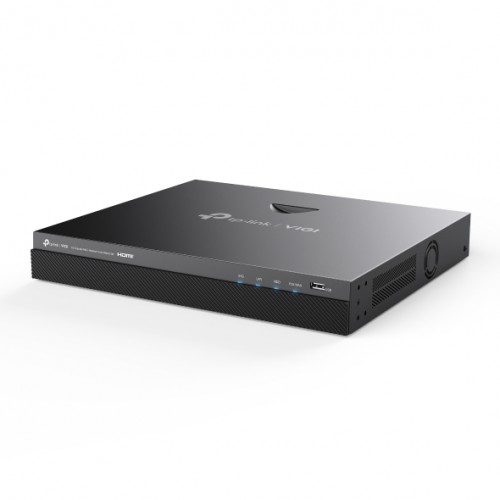

The Vigi NVR2016H-16MP is a 16 channel PoE+ network video recorder built to provide dependable recording, live viewing and playback for professional security systems. It offers clear monitoring with support for 4K HDMI output, giving you detailed visuals across all connected channels.
It includes sixteen 10/100 Mbps PoE+ ports with a total power budget of 140 watts, allowing compatible VIGI cameras to be connected and powered directly from the unit. The recorder can handle up to ten channels at 3 megapixels or sixteen channels at full HD, adapting to different layout and monitoring needs.
For storage, there are two SATA interfaces that support a combined capacity of up to 16 terabytes. The device also uses H.265+ smart video coding to help extend storage time while maintaining image quality. With an incoming and outgoing bandwidth of 320 Mbps, the system manages data smoothly even when several cameras are active at once.
A one click setup process simplifies installation by helping you add cameras and configure storage quickly. Independent HDMI and VGA outputs provide flexible display options, while additional functions such as alarms, logs and smart playback make day to day monitoring more efficient.
Features
- 16-Channel Live View and 4K HDMI Video Output
- 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget
- Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming and Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- Alarm In/Out: 6/4
- HDMI and VGA Independent Output
Kit Contents
- 1x VIGI Network Video Recorder
- 1x Power Adapter
- 1x Power Cable
- HDD Power Cables
- HDD Data Cables
- Mounting Accessories
- 1x Mouse
- 1x Quick Installation Guide
Manuals & Datasheet
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps: 10-ch @ 3MP, 16-ch @ 1080P • 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | |
| Protocol | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S, CGI |

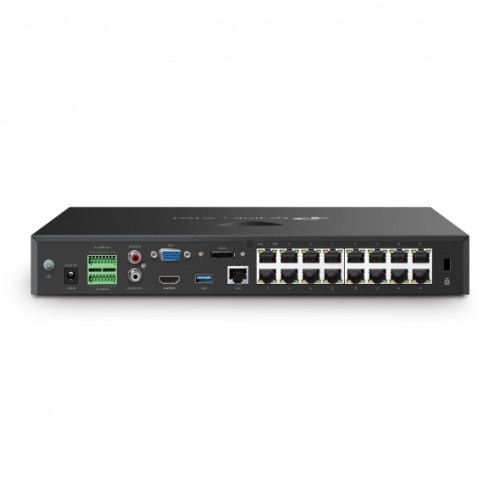

| EXTERNAL INTERFACE | |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0, 1 Rear USB 3.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1 × DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1* |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB per HDD* |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1–16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 140△ W Total, 30 W Max per Port |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering/Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame |
| Anomaly Alarm | Video Loss, Offline/IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%–90% RH Non-Condensing |
| Package Content | VIGI Network Video Recorder, Power Adapter, Power Cable, HDD Power Cables, HDD Data Cables, Mounting Accessories, Mouse, Quick Installation Guide |
| Working Temperature | NVR: -10–55 °C; Power Adapter: 0–40 °C |
| Working Humidity | 10%–90% RH Non-Condensing |
| Dimensions (W × D × H) | 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm) |
| Net Weight | 2.2 Kg# |
| Gross Weight | 4.2 Kg# |
| Power Supply | 53.5V DC / 3.37A |
| Max. Power Consumption | 6.2 W (Without Disk), 40 W (With Disk) |
| Certifications | CE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF |
