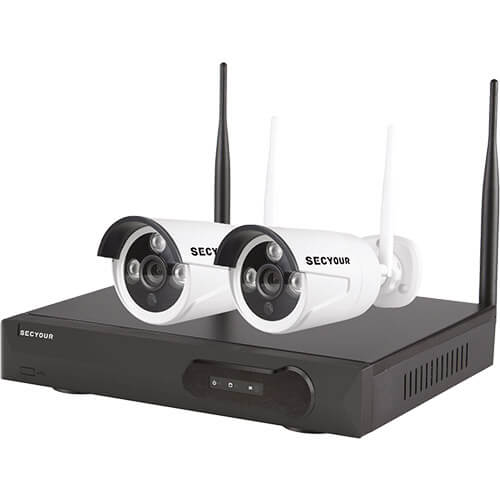

Click Image for Gallery
Night Vision
Motion Detection
High Definition
Remote Viewing
Weather-proof

Ideal for parking lots, gyms, businesses, schools & homes
Wi-Fi
Day and Night
Easy To Set-Up


2MP HD 1080P
IP65 Protection
1TB Storage
Monitor, operate and live-stream multiple CCTV systems with remote access via the internet on computer, tablet or smartphone simply by scanning a QR code.
Customisable alerts and time schedules allow for audible, email or push notifications so you are in the know when it matters most.
*Please Note:
Range can be affected by the installation environment and other factors
WIFI NVR:
- Motion detection with customisable "hotspot" recording function
- 8 channels allow for adding of additional cameras
- High performance wi-fi module built-in
- Remote monitoring and operation via the internet
- Supports video preview, recording, playback and backup
- 1TB storage included (expandable up to 6TB)
- USB 2.0 port for connecting a mouse
- SATA port for backing up data
- HDMI and VGA port for direct connection to an existing TV set-up, no need for an additional monitor (however you can have two screens connected if desired)
- Connects to any broadband router via ethernet lead
WIFI Camera:
- Night vision up to 20m distance*
- 2MP HD resolution, captures crystal clear images at 1080P widescreen
- Weather-proof IP65 protection (dust proof, water resistant)
- Wirelessly transmits data up to 30m (through approx. 2-3 walls)*
- Extendable range when used with antenna extension cord (included)
- Camera and NVR connect automatically
- Simple "plug and play" installation
- Complete with lengthy 3m power lead
- P2P cloud service provides a smooth and speedy connection
- Individual cameras can act as a range extender in a large CCTV system
What's Included:
- 1 x 8CH WIFI NVR Unit
- 1 x 12v DC 2A Power Supply (For NVR)
- 2 x 2MP WIFI IP Cameras
- 2 x 12v DC 1A Power Supply (For Cameras)
- 1 x Antenna Extension Cord
- 2 x Screw Bags (For Cameras)
- 1 x User Manual
| Dimensions | |
| Dimensions (mm) | Camera: 165 * 45 NVR: 258 x 210 x 42 |
| Weight (g) | Camera: 500g |
| Electrical Data | |
| Power Consumption | Camera: ≤6W NVR: ≤5W |
| Power Supply | Camera: 12v DC 1A NVR: 12v DC |
| Image | |
| Camera Resolution | 1920 x 1080 16:9 High Definition |
| Mirror / Flip | On / Off |
| On-Screen Display (OSD) | Date, Time and Title |
| Video Input | NVR: 8CH D1 / 960H / 720P / 960P / 1080P |
| Video Output | NVR: HDMI and VGA 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1920 x 1080 |
| Memory | |
| Backup Mode | 1 x SATA port |
| Storage Capacity | 1TB included (expandable up to 6TB) |
| Network | |
| Alert Types | Audible Push Notifications |
| Audio Interface | 1 x 3.5 mm headphone jack |
| Communication Interface | Camera: RJ45 WIFI 802.11 b/g/n NVR: 1 x RJ45 10M/100M, 2 x WIFI connector |
| Playback | 4 channels |
| Recording Options | Manual Time Motion Detection Alarm |
| S/N Ratio | > 39.1 Db |
| Signal System | PAL / NTSC |
| Smart Stream | Dual-stream: 1920 x 1080 @ 15 fps 640 x 480 @ 15 fps |
| USB Interface | 1 x USB 2.0 port |
| Optics and Sensors | |
| Day and Night | IR cut filter with auto switch |
| DNR | 3D-DNR (auto) |
| Image Sensor | 1/3” Progressive Scan Sensor |
| IR Distance | 20m |
| Lens | 4mm |
| Minimum Illumination | Colour: 0.1 Lux B/W: 0.01 Lux |
| Shutter Time | 1/25s to 1/25,000s |
| White Balance | Auto |
| Performance Data | |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Operating Humidity | Camera: 30% to 80% RH NVR: 10% to 90% RH |
| Operating Temperature | Camera: -10°C to +50°C NVR: -10°C to +55°C |
| Storage Humidity | 20% to 90% RH |
| Storage Temperature | -20°C to +60°C |
| Technical | |
| Protection Level (IP) | 65 (dust proof, water resistant cameras) |
