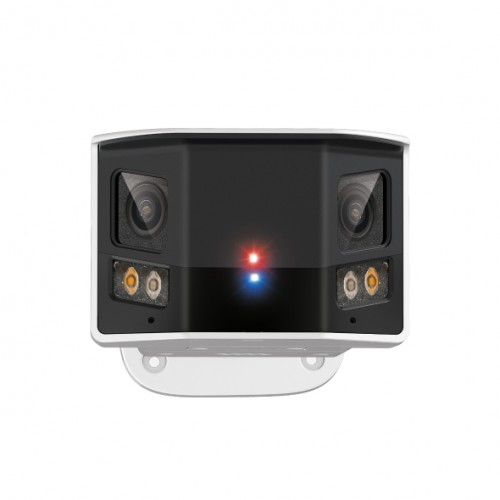

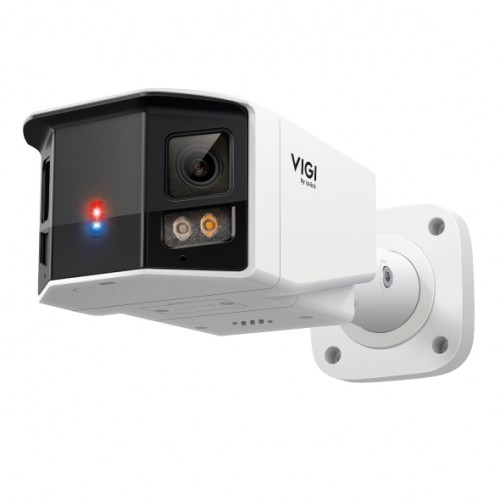

The VIGI InSight S385DPS is an 8-megapixel outdoor ColorPro panoramic bullet network camera designed to deliver wide-area coverage with high detail and advanced low-light performance. Its dual-lens stitched panoramic imaging provides a seamless 180-degree Ultra HD view, allowing it to cover spaces that normally require multiple cameras while reducing installation costs.
Powered by ColorPro ultra-low-light technology, the S385DPS captures vivid colour footage even in dark environments, maintaining crucial visual detail such as faces, vehicles and clothing. For active on-site deterrence, the camera includes red and blue warning lights, sound alerts, and flexible audio and alarm interfaces for linking external devices.
The built-in analytics feature people and vehicle attribute detection, human and vehicle classification, and smart detection modes to reduce false alarms and streamline event searching. Smart video enhancement technologies ensure balanced exposure and clear imaging in high-contrast scenes.
Engineered for durability, the S385DPS is IP67 weatherproof and IK10 vandal-resistant, making it suitable for demanding outdoor installations. With H.265+ compression, it maintains image quality while reducing bandwidth and storage usage. This combination of wide-angle coverage, AI-driven detection and robust construction makes it ideal for car parks, industrial yards, public spaces and other large-area monitoring scenarios.
Features
- 4K (8MP) Ultra-High Definition
- Dual-lens Stitched Panoramic Imaging
- Ultra-Low Light ColorPro Night Vision
- Red-Blue Warning Lights and Sound Alerts
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal-Proof
- H.265+ Compression Technology
Kit Contents
- 1x VIGI Network Camera S385DPS
- 1x Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Datasheet
Technical
| CAMERA | |
|---|---|
| Image Sensor | Dual 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 5 mm |
| Aperture | Dual F1.0 |
| FOV | Horizontal: 180°, Vertical: 51°, Diagonal: 180° |
| Lens Mount | M16 |
| DORI Distance (5mm) | D: 249 ft (76 m) O: 95 ft (29 m) R: 46 ft (14 m) I: 23 ft (7 m) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| ILLUMINATOR | |
| IR LED | Quantity: 2; Range: 164 ft (50 m)†; Wavelength: 850 nm |
| White LED | Quantity: 2; Range: 164 ft (50 m)† |
| Illuminator On/Off Control | Auto / Scheduled / Always On / Always Off |
| VIDEO | |
| Max. Resolution | 5456 x 1520 |
| Main Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz), 1/5/10/15/20/24fps (60Hz) Resolution: 5456x1520, 4096x1152, 2160x608 Note: People counting or attribute analysis limits frame rate to 20fps. |
| Sub-Stream | Frame Rate: 1/5/10/15/20/25fps (50Hz), 1/5/10/15/20/24fps (60Hz) Resolution: 2160x608, 1280x360 Note: People counting or attribute analysis limits frame rate to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps-8 Mbps; Sub: 64 Kbps-1024 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC Adjustable |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Dual Microphone |
| Audio Output | Built-in Speaker |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes (Profile S/T/G) |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS, IP Filter, Digest Auth, 802.1X |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Intrusion, Line-Crossing, Region Enter/Exit, Loitering, People Detection, Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Event | Motion Detection (Human/Vehicle Enhanced), Video Tampering, Illegal Login, Alarm Input Device |
| Alarm Linkage | Record to SD, FTP Upload, Alarm Output Device, Push Notifications, Alarm Server, Light Alarm, Sound Alarm, Email |
| DEEP LEARNING | |
| People & Vehicle Analytics | Attribute-based searching and filtering‡ |
| INTERFACES | |
| Network Interface | 1 x RJ45 10/100M Ethernet, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | MicroSD Slot, up to 512 GB* |
| Built-in Microphone | Yes, 5 m Radius |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | ≤ 95% RH (Non-Condensing) |
| Storage Humidity | ≤ 95% RH (Non-Condensing) |
| Package Content | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 1.12 kg |
| Power Supply | 12V DC ±5% Max 18W; PoE 802.3at Class 4 Max 21W |
| Protection | IP67 Weatherproof, IK10 Vandal-Proof |
| Product Dimensions | 10.5 x 4.6 x 3.5 in (266 x 116 x 90 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
