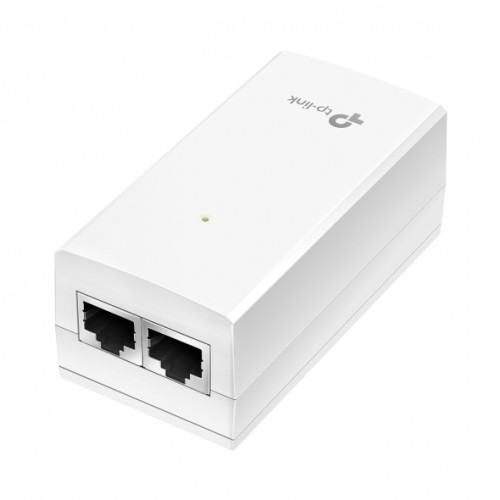

The TP-Link POE2412G is a Gigabit passive PoE adapter designed to provide both power and data to compatible devices over a single Ethernet cable. Ideal for powering outdoor access points, CPE units, and other passive PoE devices, it offers a straightforward and cost-effective solution for extending network deployments without additional power cabling.
Supporting Gigabit Ethernet speeds, the POE2412G ensures stable data transmission alongside consistent power delivery. Its passive PoE design delivers fixed voltage output, making it suitable for specific TP-Link devices and other compatible equipment that require reliable, uninterrupted power.
With its plug-and-play setup, the POE2412G requires no configuration, allowing quick installation in both new and existing networks. The compact design and durable construction make it well suited for indoor use in a variety of environments, including offices, small business installations, and network expansion scenarios.
The POE2412G is a practical solution for simplifying deployments where passive PoE is required, offering dependable performance and easy integration with compatible networking equipment.
Features
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power depends on requirements
- Convenient wall-mounting design
- Plug-and-Play, no configuration required
Kit Contents
- 24V, 12W Passive PoE Adapter TL-POE2412G
- Power Cord
- Wall Mounting Kits
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 2 x 10/100/1000 Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 x 100~240V / 50~60Hz AC Power Input Port |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5,5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5,5e,6 cable (Max 100m) |
| Power Supply | 12W (Max. 24VDC) |
| LED | PWR |
| Dimensions (W x D x H) | 3.4*1.7*1.4 in.( 85.8mm*43.9mm*35mm) |
| Other | |
| Certification | FCC, CE, RoHS |
| Package Content | Omada 24V 12W Passive PoE Adapter POE2412G Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
