The JetStream TL-SG2210P is a compact, smart‑managed Gigabit switch designed for small to medium business networks that need reliable performance, centralised control, and simplified PoE deployment. With 8 Gigabit PoE+ ports and 2 SFP uplinks, it delivers both data and power over a single cable, making it ideal for IP cameras, wireless access points, VoIP phones, and other PoE‑powered devices.
Integrated with TP‑Link’s Omada SDN platform, the TL‑SG2210P supports cloud-based management, zero‑touch provisioning, and centralised monitoring, allowing network administrators to configure and manage multiple sites from a single interface. Advanced Layer 2+ features such as VLANs, static routing, QoS, and IGMP snooping ensure stable, efficient traffic handling for voice, video, and data applications.
Built with enterprise‑grade security including ACLs, 802.1X authentication, storm control, and DHCP snooping. The TL‑SG2210P helps protect network integrity while remaining easy to deploy and manage via web, CLI, SNMP, or cloud access. It’s a practical, scalable switching solution for offices, retail, education, and hospitality environments where performance and control matter.
Features
- 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W.
- 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- L2/L3/L4 QoS and IGMP snooping.
- WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Kit Contents
- TL-SG2210P Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Standards and Protocols: IEEE 802.3i, 802.3u, 802.3z, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
- Interfaces: 8 × 10/100/1000 Mbps RJ45 ports, 2 × 1000 Mbps SFP slots with auto negotiation and auto MDI/MDIX
- Network Media: 10BASE-T UTP Cat 3, 4, 5 up to 100 m; 100BASE-TX and 1000BASE-T UTP Cat 5, 5e or above up to 100 m; 1000BASE-X MMF and SMF
- Fan Quantity: Fanless
- Power Supply: 100–240V AC, 50/60Hz with external adapter output 54V DC / 1.3A
- PoE: 802.3af and 802.3at compliant, 8 PoE ports, 61 W power budget
- Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
- Mounting: Desktop or wall mounting
- Max Power Consumption: 10.3 W without PoE devices, up to 77.8 W with 61 W PoE connected depending on hardware version
- Max Heat Dissipation: Up to 265.3 BTU/hr with 61 W PoE connected depending on hardware version
|
| Performance | - Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Switching Capacity: 20 Gbps
- Bandwidth Backplane: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8 K
|
| Quality of Service | - 802.1p CoS and DSCP priority
- 8 priority queues
- Scheduling modes: SP and WRR
- Queue weight configuration
- Bandwidth control with port and flow based rate limiting
- Storm control for broadcast, multicast and unknown unicast traffic
|
| L2 and L2+ Features | - 16 IPv4 and IPv6 interfaces
- 32 static IPv4 and IPv6 routes
- DHCP server and relay including interface, VLAN and L2 relay
- Static, proxy and gratuitous ARP
- Static and LACP link aggregation with up to 8 groups
- Spanning Tree support for STP, RSTP and MSTP with protection features
- Loopback detection
- 802.3x flow control
- Port and CPU mirroring with multiple modes
- DLDP
- LLDP and LLDP-MED
|
| VLAN | - Up to 4K VLAN groups
- 802.1Q tagged VLAN
- MAC VLAN and protocol VLAN
- GVRP
- Voice VLAN
|
| Access Control List | - Up to 230 ACL entries
- Time based, MAC, IP and IPv6 ACLs
- Permit and deny rule operation
- Mirror, rate limit, redirect and QoS remark actions
- Port and VLAN rule binding
|
| Security | - AAA and 802.1X authentication
- RADIUS authentication and accounting
- IP and IPv6 MAC binding with up to 512 entries
- DHCP and DHCPv6 snooping, ARP inspection and ND detection
- IP and IPv6 source guard
- DoS protection
- Port security up to 64 MAC addresses per port
- HTTPS and SSH secure management
|
| IPv6 | - IPv6 static routing and ACL
- Dual IPv4 and IPv6 stack
- MLD snooping
- Neighbour discovery and MTU discovery
- IPv6 SNMP, SSH, SSL, HTTP and TFTP support
|
| Management | - Web-based GUI and CLI via telnet
- SNMP v1, v2c and v3
- RMON monitoring groups
- Dual image and dual configuration
- CPU monitoring, cable diagnostics, EEE, SNTP and system log
|
| MIBs | - MIB II, Bridge and P/Q-Bridge MIB
- RADIUS authentication and accounting MIB
- Remote ping and traceroute MIB
- RMON MIB groups
- TP-Link private MIBs
|
| Others | - Certifications: CE, FCC, RoHS
- Package contents: TL-SG2210P switch, power adapter, installation guide, rubber feet
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non-condensing
- Storage humidity: 5–90% RH non-condensing
|

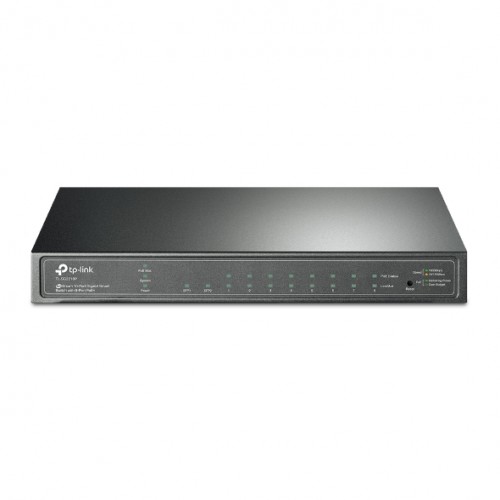

3.2_01_normal_1594974330186l-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")

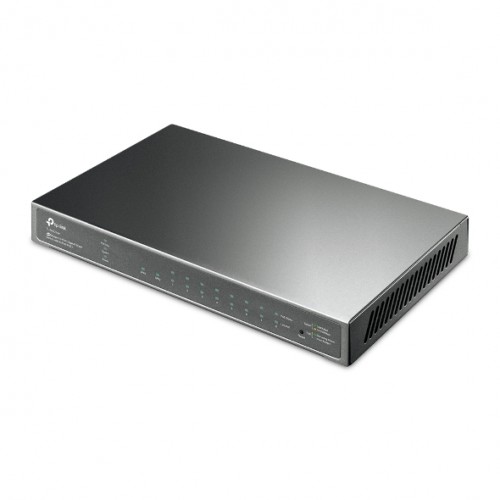

3.2_02_normal_1594974341872k-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")

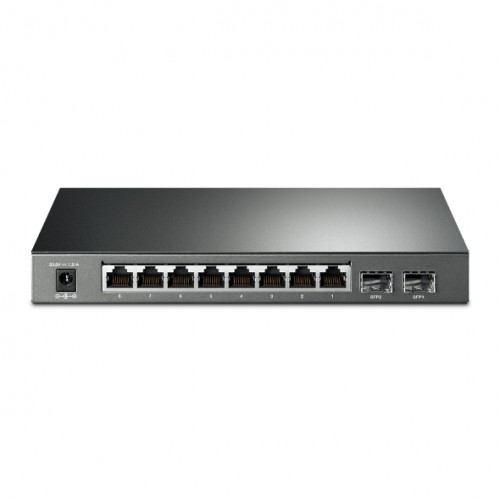

3.2)_03_normal_1594974359538i-500x500.jpg "JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+")
