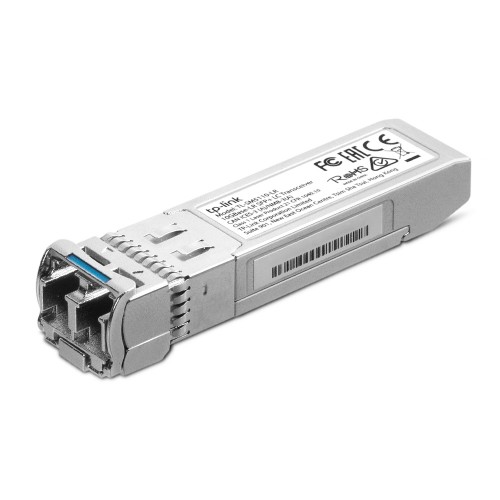

1.0-R4_large_1608119836179j-500x500.jpg "TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver")
The TP-Link SM5110-LR is a 10 Gigabit SFP+ transceiver module designed to deliver high-speed fibre connectivity over long distances. Ideal for enterprise networks, campus environments, and data centre uplinks, it provides a reliable solution for extending 10G network connections using single-mode fibre.
Supporting 10 Gigabit Ethernet speeds, the SM5110-LR ensures fast, stable data transmission for bandwidth-intensive applications. Its hot-swappable SFP+ form factor allows for easy installation and replacement without interrupting network operation, making network upgrades and maintenance simple.
Designed for seamless compatibility with supported TP-Link networking equipment, the SM5110-LR offers a cost-effective way to build high-performance fibre links and expand network capacity across longer distances.
Features
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG342
Manuals & Datasheets
| Transceiver | |
|---|---|
| Standards & Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fibre Type | 9/125µm Single-Mode |
| Max. Cable Length | 10km |
| Data Rate | 10Gbps |
| Port Type | LC Duplex |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10 ~ 90% RH non-condensing Storage Humidity: 5 ~ 90% RH non-condensing |
| Hardware Features | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Other | |
| Dimensions | 2.2 x 0.5 x 0.4in (56.7 x 13.9 x 10.35mm) |
| Package Content | SM5110-LR Installation Guide |
