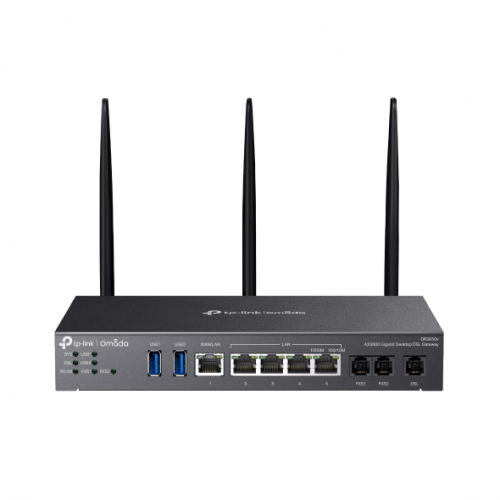

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

The Omada DR3650v is an all‑in‑one business gateway designed for environments that rely on xDSL broadband while requiring secure routing, wireless connectivity, and centralised management. Combining a DSL modem, VPN router, and Wi‑Fi access point in a single device, it simplifies deployment for small offices and branch locations.

Supporting VDSL and ADSL connections, the DR3650v delivers stable WAN connectivity for everyday business traffic. Integrated Wi‑Fi provides reliable wireless coverage without the need for a separate access point, while advanced routing features, QoS, and comprehensive VPN support enable secure site‑to‑site and remote access connectivity.

Fully integrated with the Omada SDN platform, the DR3650v supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies and access control help protect network traffic, making the DR3650v a practical all‑in‑one solution for businesses that need dependable DSL connectivity with simplified management and integrated wireless networking.


Features

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • VDSL2 35b: Supports 350Mbps DSL Access
  • VDSL2/ADSL2+/ADSL2/ADSL Compatibility
  • Centralised Cloud Management
  • IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
  • Load Balancing Between DSL and Ethernet WAN
  • Omada Mesh Technology
  • 3 × RJ11 Ports (2 × FXS, 1 × DSL) & 5 × RJ45 Gigabit Ports & 2 × USB 3.0 Ports
  • Desktop/Wall Mounting
  • 8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)

Kit Contents

  • DR3650v
  • Power Adapter
  • Ethernet Cable
  • Phone Cable
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Security
  • Access control: Source and destination IP based access control
  • Filtering: Web group filtering, URL filtering and web security
  • ARP inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Interfaces: 3 RJ11 ports including 2 FXS and 1 DSL, 5 Gigabit RJ45 ports including 1 WAN or LAN and 4 LAN ports, 2 USB 3.0 ports
  • Buttons: Reset button
  • Power supply: 12 V DC / 3.3 A power adapter
  • Wi‑Fi frequency and speed: 2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps
  • Flash: 256 MB NAND
  • DRAM: 512 MB DDR4
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Antenna: Two 2.4 GHz 3 dBi and three 5 GHz 4.5 dBi detachable dual band antennas
  • Mounting: Desktop or wall mounting
  • Max power consumption: 16.8 W with USB connected, 11.8 W without USB
Performance
  • Concurrent sessions: 150,000
  • New sessions per second: 5,100
  • NAT throughput: Up to 946 Mbps depending on connection type
  • IPsec VPN throughput: Up to 658.4 Mbps depending on encryption
  • GRE throughput: 624.2 Mbps unencrypted, 301.5 Mbps encrypted
  • WireGuard VPN throughput: 393.5 Mbps
  • OpenVPN throughput: 129.3 Mbps
  • L2TP VPN throughput: 1034.0 Mbps unencrypted, 570.0 Mbps encrypted
  • PPTP VPN throughput: 1165.0 Mbps unencrypted, 209.0 Mbps encrypted
  • SSL VPN throughput: 126.7 Mbps
Wireless Features
  • Advanced features: Seamless roaming, mesh support, OFDMA, beamforming and MU‑MIMO
  • Encryption: WPA, WPA2 and WPA3 personal and enterprise
  • Guest network: Supported
Basic Functions
  • WAN types: Static IP, dynamic IP, PPPoE with MRU support, PPTP and L2TP
  • MAC clone: WAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Routing: Static routing and policy routing, RIP and OSPF
  • Bandwidth control: IP based bandwidth control
  • Load balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, virtual server, port triggering, DMZ, ALG and UPnP
  • Session limit: IP based session limit
VPN
  • SSL VPN: Up to 50 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP and L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • WireGuard VPN: Up to 20 tunnels
Authentication
  • Web authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada cloud, hardware and software controller support
  • Zero touch provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI, syslog, diagnostics, port mirroring and TR‑069 support
  • Automatic discovery, unified configuration, monitoring and scheduled reboot
Others
  • Certifications: CE, RoHS
  • Package contents: DR3650v, power adapter, Ethernet cable, phone cable and installation guide
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90 percent non condensing
  • Storage humidity: 5–90 percent non condensing

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

  • Brand: TP-Link
  • Product Code: DR3650v
  • Availability:  In Stock
