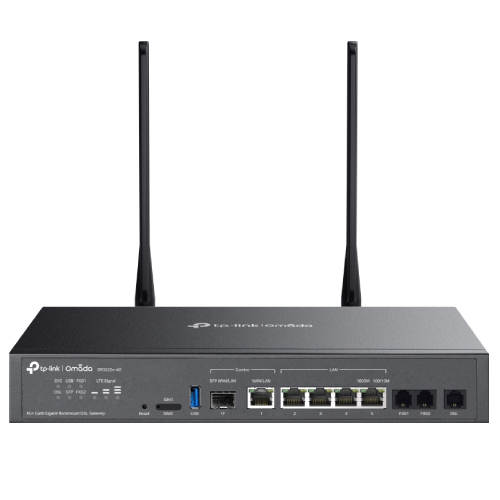

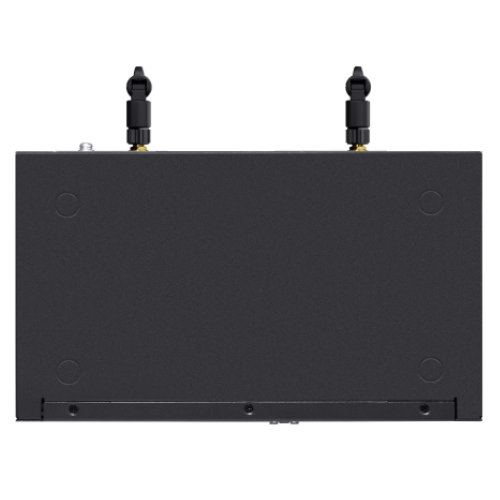

Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway

The Omada DR3220v‑4G is a compact all‑in‑one business gateway designed for small offices and branch locations that need flexible internet access, secure routing, and integrated wireless networking. By combining an xDSL modem, 4G LTE connectivity, VPN router, and Wi‑Fi access point in a single device, it simplifies deployment while improving network resilience.

Supporting VDSL and ADSL connections with 4G LTE as either a primary or backup WAN, the DR3220v‑4G ensures reliable connectivity with automatic failover to maintain uptime. Built‑in Wi‑Fi provides dependable wireless coverage without the need for additional hardware, while advanced routing features, QoS, and comprehensive VPN support enable secure site‑to‑site links and remote access for business users.

Integrated with the Omada SDN platform, the DR3220v‑4G supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. With enterprise‑grade security features such as firewall policies and access control, it is a practical all‑in‑one solution for businesses that require resilient connectivity, simplified management, and integrated wireless performance.


Features

  • Supports 4G+ Cat6 up to 300 Mbps.
  • Supports 350Mbps DSL access.
  • VDSL2/ADSL2+/ADSL2/ADSL compatibility.
  • Three (3) RJ11 ports (1 x DSL, 2 x FXS).
  • One (1) Gigabit SFP/RJ45 combo WAN/LAN port.
  • Four (4) Gigabit RJ45 LAN ports.
  • One (1) USB 3.0 port.
  • Two (2) Nano SIM for 4G/LTE failover.
  • DPI security support.
  • IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE (supported in standalone mode) / SSL VPN.
  • Load balancing across DSL, 4G, and Ethernet WAN for optimised connectivity.
  • Centralised cloud management.
  • Supports desktop / rack-mounting.

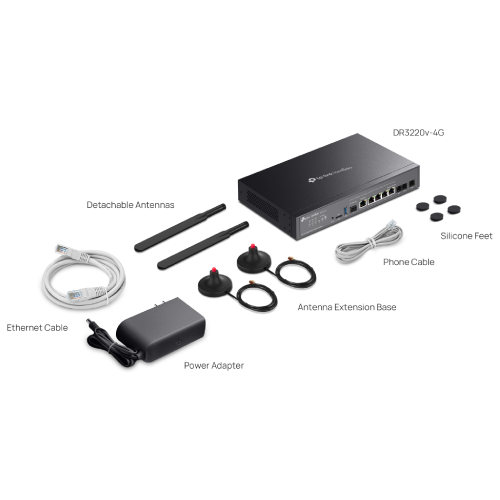

Kit Contents

  • DR3220v-4G Gateway
  • Power Cord
  • Ethernet Cable
  • Phone Cable
  • Rubber Feet
  • SIM Card Eject Pin
  • Rack-mount Kit
  • Antenna Extension Base
  • Installation Guide

Technical


CategorySpecification
Hardware Features
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE and SNMP

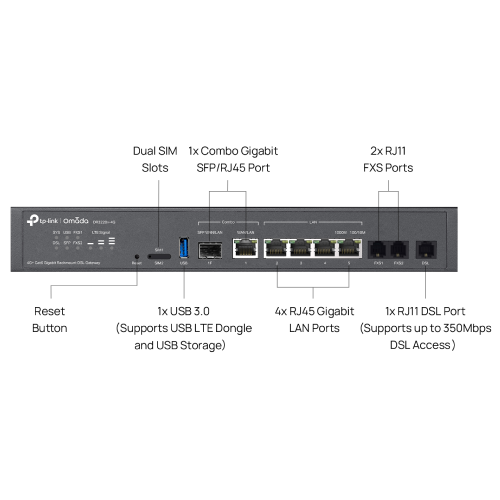

  • Interfaces: 1 combo Gigabit SFP and RJ45 WAN or LAN port, 4 Gigabit LAN ports, 1 DSL port, 2 FXS ports
  • USB: 1 × USB 3.0 supporting LTE dongle and storage
  • LTE: Dual nano SIM slot, 4G Plus Cat6
  • LTE Speed: Downlink up to 300 Mbps, uplink up to 50 Mbps
  • DSL Support: VDSL2 up to 35b profile, ADSL2 Plus, ADSL2 and ADSL
  • DSL Speed: Up to 350 Mbps
  • Antennas: 2 × detachable 3 dBi LTE omnidirectional antennas
  • Buttons: Reset button

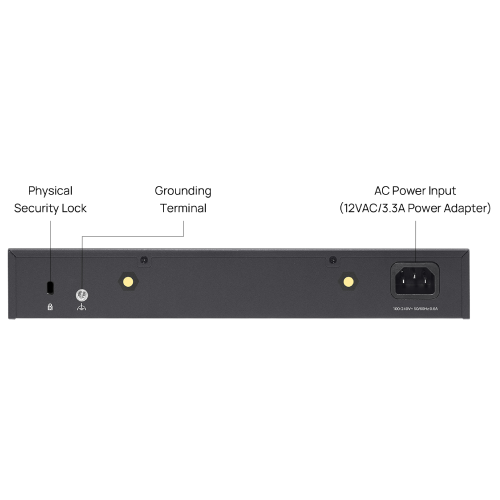

  • Power Supply: 100–240 V AC, 50 or 60 Hz
  • Flash: 256 MB NAND
  • DRAM: 512 MB DDR4
  • LED Indicators: System, DSL, USB, SFP, FXS1, FXS2, LTE signal, WAN and LAN status
  • Surge Protection: 6 kV on DSL port, 4 kV on other ports
  • Mounting: Desktop or rack mounting

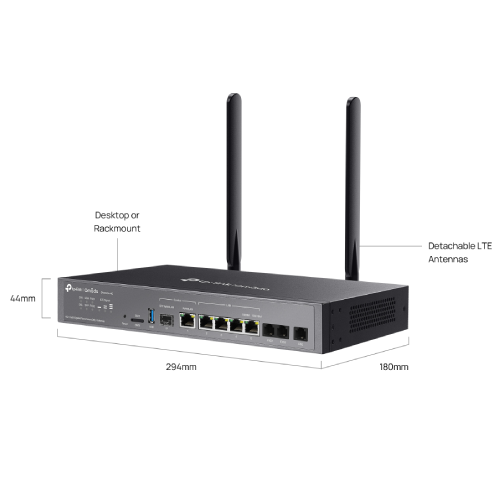

  • Dimensions (W × D × H): 294 × 180 × 44 mm
  • MTBF: 796,893 hours at 25 °C, 611,883 hours at 40 °C
4G Network
  • LTE EU Bands: FDD and TDD bands with extensive carrier aggregation support
  • 3G Support: WCDMA and HSPA variants
  • SIM Type: Dual nano SIM
Performance
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 4,050
  • NAT Throughput: Up to 946 Mbps depending on connection type
  • Packet Forwarding: Up to 1,453,489 pps for 66 byte packets
  • IPsec VPN Throughput: Up to 561.7 Mbps depending on encryption
  • GRE Throughput: 491.9 Mbps unencrypted, 244.3 Mbps encrypted
  • WireGuard VPN Throughput: 290 Mbps
  • OpenVPN Throughput: 129.3 Mbps
  • L2TP VPN Throughput: 909.4 Mbps unencrypted, 494.9 Mbps encrypted
  • PPTP VPN Throughput: 897.5 Mbps unencrypted, 190.8 Mbps encrypted
  • SSL VPN Throughput: 126.7 Mbps
Security
  • Access Control: Source and destination IP based access control
  • Filtering: Web group filtering, URL filtering and web security
  • DNS Proxy: DNSSEC, DoH and DoT
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Basic Functions
  • WAN Types: Static IP, dynamic IP, PPPoE, PPTP and L2TP
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • MAC Clone: WAN MAC address modification
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • Stateful ACL: Supported
  • mDNS Repeater: Supported
  • QoS: Supported
  • Bridge VLAN: Supported
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
  • SMS: Receive and send SMS
VoIP
  • Protocols: RTP, RTCP and SIP
  • SIP Registrars: Up to 12
  • Voice Codecs: G.711 A and U, G.726, G.729 A and B, G.722
  • Call Features: Call waiting, forwarding, hold, return, DND, voicemail and emergency numbers
Advanced Features
  • Routing: Static routing, policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, virtual server, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
VPN
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 50 tunnels
  • L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • SSL VPN: Up to 50 tunnels
  • WireGuard VPN: Supported
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada App, cloud, hardware and software controller support
  • Zero touch provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and TR‑069 support
  • Automatic discovery, unified configuration, monitoring and scheduled reboot
Others
  • Certifications: CE, RoHS
  • Package contents: DR3220v‑4G gateway, power cord, Ethernet cable, phone cable, rackmount kit, antenna extension base, SIM eject pin, rubber feet and installation guide
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway

  • Brand: TP-Link
  • Product Code: DR3220V-4G
  • Availability:  In Stock
