The 8K1S/IR audio kit has been designed for people with limited mobility. The 500M Loudspeaking apartment station is wall mounted and can be controlled by the included 500TS touch sensitive remote control. 2 extension apartment stations can be added (500MM). The apartment station can also be manually operated by way of buttons. The three buttons available on the front of the apartment station allow for answer/speak, door release and privacy. A privacy LED is also included.
Up to three apartment stations can be fitted in to one apartment allowing the user to operate the system from the three most popular rooms (The remote control must be in line of site with the apartment station).
Features
- Speak and door open buttons
- Electronic call tone with volume adjust
- Timed privacy with four optional times and indication LED
- Dry contact alarm relay and timed door open relay
- Remote control has touch sensitive large buttons and is powered by a PP3 9 volt battery

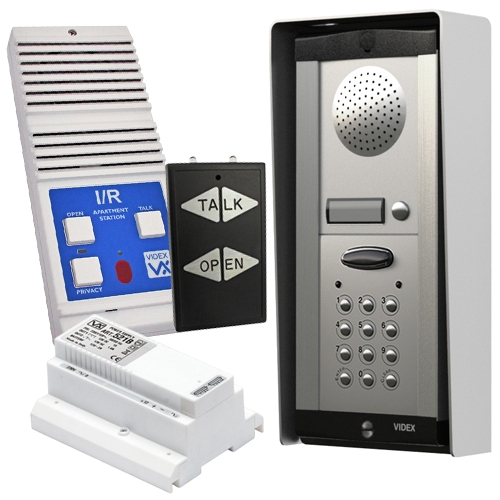

Kit Contains
- 8837-1 speaker unit & 8900 code lock with surface or flush box
- 500MM apartment station
- 500TS remote control
- 521 PSU.
Technical
500MM apartment station
- Material – White ABS plastic
- No. Of cores to station – 6
- Recommended cable type – CW1308
- AC buzzer call tone – No
- Electronic call tone – Yes (Internal)
- Call tone volume setting – Yes
- Lock release button – Yes
- Dry contact button – No
- Privacy of speech between handsets – Yes
- Timed mute switch – Yes
- Mute switch with on/off LED – Yes

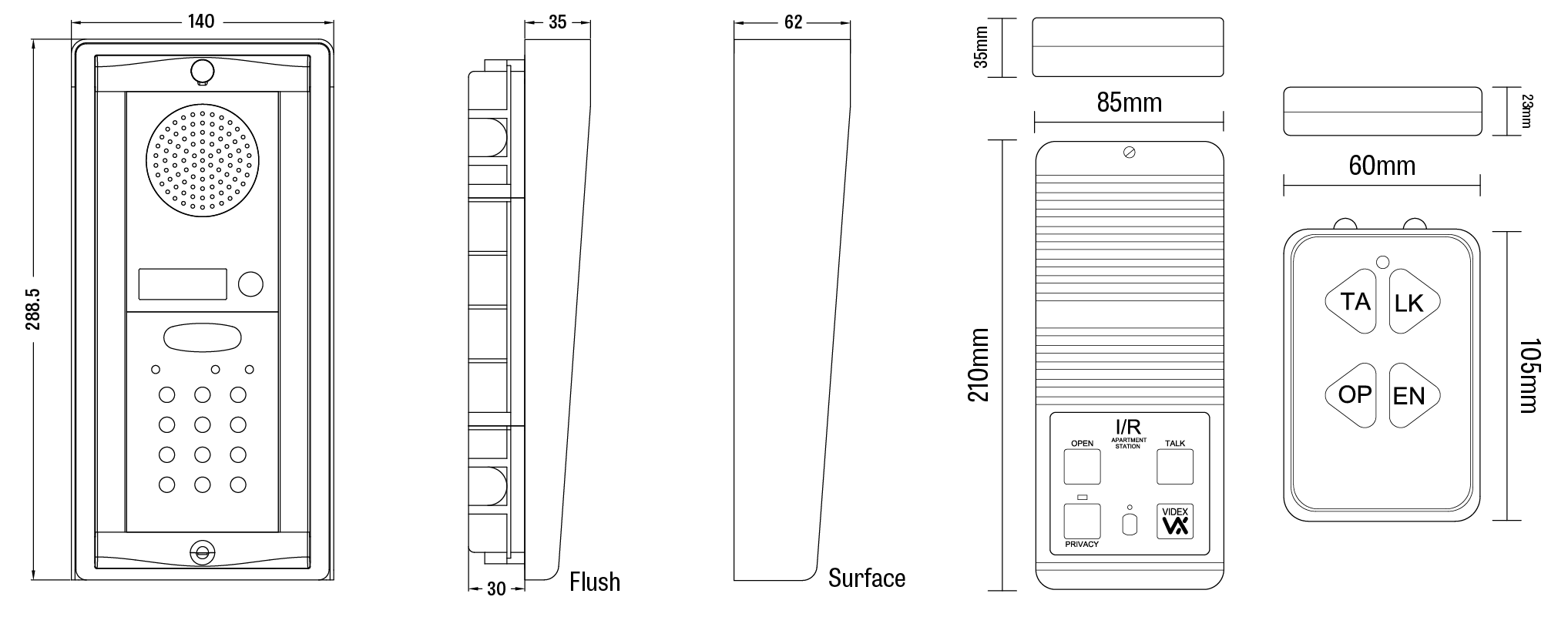

Dimensions
