FAAC 413 UK KIT - Double Ram Kit (230v, 1.8m to 2.5m Max Per Leaf)

Details -

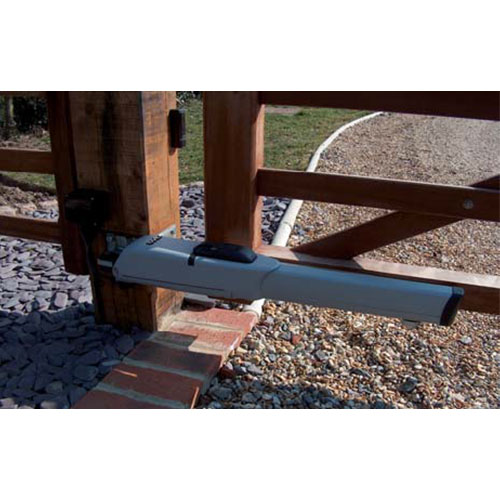

The 413 UK KIT is a FAAC 230v electro-mechanical double ram kit for residential swing gates for up to 1.8m per leaf (2.5m when fitted with electric lock), complete with manual release mechanism and simplified key-protected activation. Electro-mechanical technology makes the FAAC 413 ideal for light duty applications.


NOTE - For obstacle detection with E145 control board use safety edges and/or safecoder. For obstacle detection with 455D control board use safety edges.


Technical Features Include -

  • Motor Type - Electro-Mechanical
  • Max. Gate Leaf Length (M) - 1.8m (2.5m with electric lock)
  • Power Supply (V) - 230v
  • Absorption (A) - 1.1A
  • Power (W) - 250W
  • Rod Speed (cm/s) - 1.6cm/s
  • Protection Level (IP) - IP54
  • Working Temp. (°C Min/Max) - -20°C to +55°C

Other Features Include -

  • Integrated opening and closing mechanical stops
  • Half bodies are coupled with a seal in pressure cast
  • Die-cast aluminium body, entirely double-coat painted for longer life
  • Manual release device with simplified key-protected activation
  • Horizontal exit for cables to allow low installation

Kit Contents -

Kit Type - Double

  • 2 x 413 (230v) Rams
  • 1 x 455D Control Panel (With Housing)
  • 1 x 868MHz Plug-In Receiver / Decoder
  • 2 x XT2-868 Remotes (868MHz)
  • 1 x XP20D Photocells (Pair)

Dimensions
Dimensions (L x W x H)785mm x 105mm x 148mm (Operator)
Weight (kg)6.5kg (Operator)
Drive
Motor TypeElectro-Mechanical
Electrical Data
Absorption (A)1.1
Capacitor (μF)6.3
Motor Voltage230v
Power (W)250
Power Supply (V)230
Gate Specifications
Kit TypeDouble
Max. Gate Leaf Length (M)2.5*
Performance Data
Rod Speed (cm/s)1.6
Thermal Protection On Motor Winding (°C)140
Work Cycle (cycles/hour)~30 (at 20 °C)
Working Temp. (°C Min/Max)-20°C to +55°C
Technical
Protection Level (IP)IP54
Rod Stroke (mm)300 mm (350 mm without mechanical stops)
Thrust (daN)200
