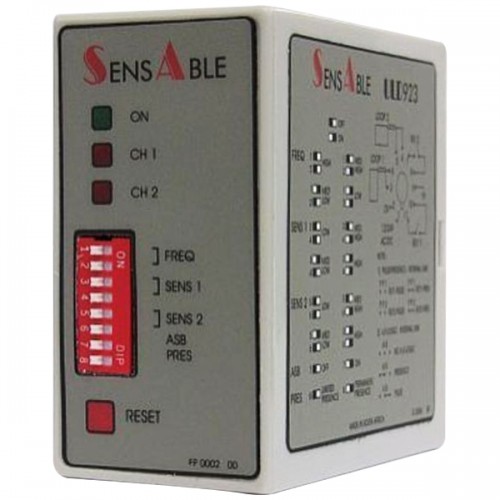

Sensable Sensors ULD466923 Dual Channel Loop Detector 12/24V

The ULD466923 is a 12-24v dual channel loop detector, this device is an ideal choice for use with induction loop automation technologies.

Ideal for

  • Parking barriers
  • Vehicle access control
  • Automated gates and doors
  • Industrial door access control

Features

  • 12-24V AC/DC
  • Dual loop channel
  • 2 Output Relays
    • Relay 1 - Presence/Pulse/AB
    • Relay 2 - Presence/Pulse/BA
  • Compact housing
  • Wide self-tuning range
  • Strong loop field strength
  • Sensitivity levels optimised for parking/vehicle access applications
  • High interference immunity
  • Selectable output configuration
  • Permanent presence feature
  • High-level circuit protection
  • Adjustable sensitivity levels
  • Automatic sensitivity boost

Manual

View Manual

Alternative Model Codes

ULD466923

ULD4669/23F

Details
Indications

3 LED’s

Green = Power

Red x 2 = Output per channel

Protection

Loop isolation

Transformer/Zener Diode/GDT

Power/Relays- MOV

Reset ButtonFlush mount on the front panel
Dimensions
Dimensions76mm (H) x 40mm (W) x 75mm (D)
Electrical Data
Current Consumption (A)165 mA max
Output Configuration

Relay 1 - Presence/Pulse/AB

Relay 2 - Presence/Pulse/BA

Relay Rating5A @ 230V AC
Input Voltage12/24V AC/DC
Performance Data
Working Temperature-40°C to +80°C
Technical
Connector11 pin
Presence Time

Selectable

Permanent or limited

Pulse Timing

Selectable

Entry or Exit

Response Time120ms
SensitivityFour steps adjustable: High, Medium High, Medium Low, Low
Sensitivity BoostSelectable on Med High, Med Low & Low Settings
